ITEM:
Brand: SecurEyes
Model: CCTV_8CH_Full_WD1
Latest
2015 & NEW Version 8
Channel P2P CCTV Full WD1 (960H)
HDMI Network HD DVR Real Time Monitoring Via
Smatphone / PC
These
NEW VERSION 8 Channel CCTV Comes with HDMI
& Additional
AUDIO IN Ports
And is it Full 8CH WD1 (960H) Version.
WD1(960H)>D1>CIF
Say good bye to old type of CIF/D1 DVR.. WD1 960H provide
best resolution.
(1 year warranty)

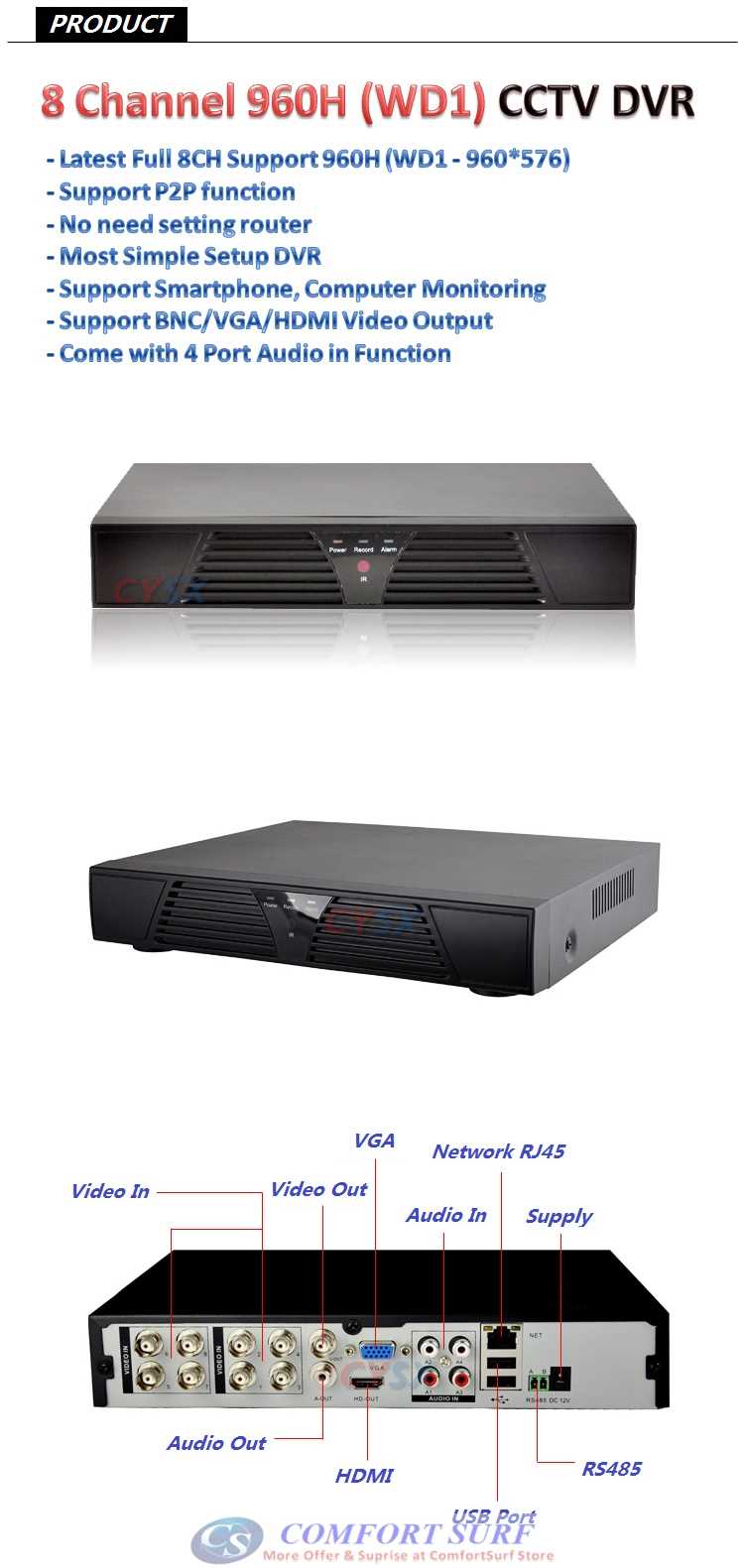

Features:
- Latest
Full 8CH Support 960H (WD1 - 960*576) /
D1 (704*576)
- Support
P2P function, No
need setting router
- Most
Simple Setup DVR
- Support
Smartphone, Computer Monitoring
- Support
BNC/VGA/HDMI Video Output
- Come
with 4 Port Audio in Function
Specification:
- Operating CPU:
HI3520D CPU
- Compression standards:
H.264 compression format
(using
Hass
program)
- Video Input:
8
channel
BNC
- Video output:
1
channel BNC
- Video
Output:
HDMI
- Preview:
PAL: WD1
(960*576) / D1 (704*576);
NTSC: WD1 (960*480) / D1 (704*480)
- Playback:
WD1 / D1
- Audio:
With audio and video
synchronization,
clear
sound and smooth,
no noise
- Frame Rate:
PAL: 1 ~ 25 帧
/
S; NTSC: 1 ~ 30 帧
/
S
- Audio input:
4
Channel RCA
- Audio output:
1
Channel RCA
- Video
output:
BNC, VGA, HDMI
- Video output:
1
channel BNC, 1
channel
VGA,
supports
simultaneous output
- HDD
maximum
support:
3TB
- Resolution:
supports
multiple
resolutions
- Motion detection:
Each screen
can
be set to 396
(22
*
18)
detection
areas;
multi-level
sensitivity
can
be set (only
local
channels)
- Power Input: DC 12V 2A (a
dedicated power supply,
as with other power
appears
not
run properly)
- Take up hard disk
space
Video:
Video CIF: 2.5GB/day/Channel,
D1:
8 ~ 10G / day/Channel, WD1: 12G/day/Channel, audio
691.2M
/
day/Channel
- Recording modes:
Manual
recording,
motion detection recording
and
external alarm recording
- VGA
resolution
support:
1280X1024
- Recording:
Manual>
Alarm>
Motion
Detection>
Schedule
- Network Interface:
RJ45 (10M / 100M adaptive)
- Local playback:
Any large ones
simultaneous
playback (1-4)
- Communication interface: RS485 (PTZ)
USB2.0 × 2
- HDD
Interface:
1
(serial
port only supports
SATA2
HDD)
- USB
Interface:
Support USB
mouse,
U disk backup, USB
mobile
hard disk
- Screen
Display:
1,4,8-screen
display
- Control Interface:
1
RS485
interface,
support 18 kinds of
PTZ
protocol
- Mobile
Remote:
Support
- Weight:
about 2.2kg
- Product
list:
DVR
(with
accessories,
without
hard
disk)
DIY
at our OWN
Installation is very simple. No special tools needed,
all you need is screw driver and insulation tape. You can always call
our office if have any difficulty during installation.
Packages Selection:
Limited
time offer, All pacakge with
Camera will be automatic enjoying Free
Upgrade
to better SecurEyes
Dome 1000TVL
(YL-3012F
Array)
Camera.
Offer start from 29 December onwards order until stock last.
Standard
Package
RM699
RM428 |
New
Version 8CH
Full WD1 (960H) CCTV DVR (1 year warranty)
1 x 8CH CCTV FULL WD1 DVR
1 x Mouse
1 x Power Supply
1 x User Manual
1 x e-CD, please download from the link given:
http://cd-ipc.com/dvr/pagedvr_en.html
|
Package
A
RM1299
RM908 |
New
Version 8CH
Full WD1 (960H) CCTV DVR
+ 8pcs
Dome 1000TVL with 24pcs
Infrared LED (SecurEyes YL-3012F LED) (Click Details)
+ 8X
|
Package
B
RM799
RM998
Full Package
(Except Harddisk) |
New
Version 8CH
Full WD1 (960H) CCTV DVR
+ 8pcs
Dome 1000TVL with 24pcs
Infrared LED (SecurEyes
YLA-3012F
LED) (Click Details)
+ 150 Meter CCTV 2in 1 Cable (Click Details)
+ 16pcs BNC Connector (Click Details)
+ 1pcs 1 to 8 Splitter (Click Details)
+ 1pcs Power Supply 12V 7A (Click Details)
+ 8X
+ 150m +
16pcs
+ 1pcs
+ 1pcs
|
Package
C
RM999
RM1188
Full Package
(Include
1TB HDD) |
New
Version 8CH
Full WD1 (960H) CCTV DVR
+ 8pcs
Dome 1000TVL with 24pcs
Infrared LED (SecurEyes
YLA-3012F
LED) (Click Details)
+ 150 Meter CCTV 2in 1 Cable (Click Details)
+ 16pcs BNC Connector (Click Details)
+ 1pcs 1 to 8 Splitter (Click Details)
+ 1pcs Power Supply 12V 7A (Click Details)
+
1pcs 1TB
Western Digital HDD
(Click Details)
+ 8X
+ 150m+
16pcs
+ 1pcs
+ 1pcs
+ 1TB
Harddisk
|
Package
D
RM999
RM1288
Full Package
(Include
2TB HDD) |
New
Version 8CH
Full WD1 (960H) CCTV DVR
+ 8pcs
Dome 1000TVL with 24pcs
Infrared LED (SecurEyes
YLA-3012F
LED) (Click Details)
+ 150 Meter CCTV 2in 1 Cable (Click Details)
+ 16pcs BNC Connector (Click Details)
+ 1pcs 1 to 8 Splitter (Click Details)
+ 1pcs Power Supply 12V 7A (Click Details)
+
1pcs 2TB
Western Digital HDD
(Click Details)
+ 8X
+ 150m+
16pcs
+ 1pcs
+ 1pcs
+ 2TB
Harddisk |
** We giving CCTV 2in1
cable in full roll, so you can cut base on your needs, as that will
make sure lenght
is enough for you.
** If you need
other CCTV accessories, please
contact us at [email protected].
Optional
Upgrade:
**
You can upgrade the dome camera to higher spec
camera and upgrade to better power supply.
To take the
upgrade option, just add the qty upgrade and amount to the
total, and remark to us the
upgrade
you take during checkout.
Any support or inquiries, just send to us at [email protected]. Our
respective person will reply you as soon as possible.
Option
Upgrade 1: (January
Promotion - When you choose package with camera, automatic enjoy this
free Upgrade)
Promotion-
Auto FREE Upgrade to
Better SecurEyes
Dome 1000TVL
(YL-3012F
Array)
- New Generation 3 IR ARRAY LAMP for Better Night vision &
Longer
Life Span
Add RM15/pcs
(FOC - Free Upgrade)
Upgrade
to
Option
Upgrade 2:
Upgrade
to Better Bossan
Dome 800TVL
(BSA-1904CH)
- Better Lense and New Generation 4cps IR ARRAY LAMP for Better
Night
vision & Longer Life Span
Add
RM25/pcs
Upgrade
to
Option
Upgrade 3:
Upgrade to Better SecurEyes
Outdoor 1000TVL
(YL-4012F
LED)
- Waterproof and weather proof, Suitable for Outdoor Use..
-
Free 1 x Holder
Add
RM30/pcs
Upgrade
to
Option
Upgrade 4:
Upgrade to Better SecurEyes
Outdoor 1000TVL
(YL-4012F
Array)
- New Generation 3pcs IR ARRAY LAMP for Better Night vision &
Longer
Life Span
- Waterproof and weather proof, Suitable for Outdoor Use..
-
Free 1 x Holder
Add
RM40/pcs
Upgrade
to
Option
Upgrade 5:
Upgrade to Best
Outdoor 1200TVL STjiatu
(ST-D02)
- Epistar Taiwan imported light board, high imaging
sensitivity, clear picture quality.
- 3rd Generation 2 Big IR ARRAY LAMP for Better Night vision
& Longer
Life Span
- Waterproof and weather proof, Suitable for Outdoor Use..
- 1200
TVL High Resolution
-
Free 1
x Holder
Add
RM50/pcs
Upgrade
to
Option
Upgrade 6:
Upgrade to Best
Outdoor 1200TVL STjiatu (ST-399B)
- High imaging sensitivity, clear picture quality, strong magnetic
interference, long service life.
- 6pcs Crystall Blue Nano Tech IR Lamp for Better Night vision
& Longer
Life Span
- Waterproof and weather proof, Suitable for Outdoor Use..
- 1200
TVL High Resolution
-
Free 1
x Holder
Add
RM60/pcs
Upgrade
to
Option
Upgrade 7:
Upgrade From Package
Dome
to Better
Outdoor STjiatu
(ST-C04) 1080TVL
- 3rd Generation 4 Big IR ARRAY LAMP for Better Night vision &
Longer
Life Span
- Waterproof and weather proof, Suitable for Outdoor Use..
-
Free 1 x Holder
Add
RM65/pcs
Upgrade
to
Option
Upgrade 8:
Upgrade to Best
Outdoor 1280TVL SecurEyes
(YL-6098F)
- 3rd Generation 2 Strong IR ARRAY LAMP for Better Night vision
& Longer
Life Span
- Waterproof and weather proof, Suitable for Outdoor Use..
- 1280
TVL High Resolution
-
Free 1
x Holder
Add
RM75/pcs
Upgrade
to
Option
Upgrade 9:
Upgrade to Better Power Supply SecurEyes 120W (12V 10A)
- More stable, Durable, Designed for CCTV, Heavy Duty
Add
RM20
Upgrade
to
Option
Upgrade 10: (highly recommended)
Upgrade to Better Power Supply SecurEyes 4 Channel 12V
10A
Iron Box
-
Professional Power Supply with safety iron box (key included)
- More stable, Durable, Designed for CCTV, Heavy Duty and higher rating
10A
- Each channel protected by a fuis, good for device
Add
RM90
Upgrade
to
|
CCTV
DVR 1 Year Warranty
CCTV Camera 3 Month Warranty
Now
we offer 1
to 1 exchange
within one month after purchase!
Others
Click for 4 channel
and 16 channel
package if you need it.
Reseller
or Dropshipping reseller are welcomed..!!
Thanks
for visit.
|
|
