ITEM:

Brand: SecurEyes
Model: CCTV_4CH_AHD_3in1

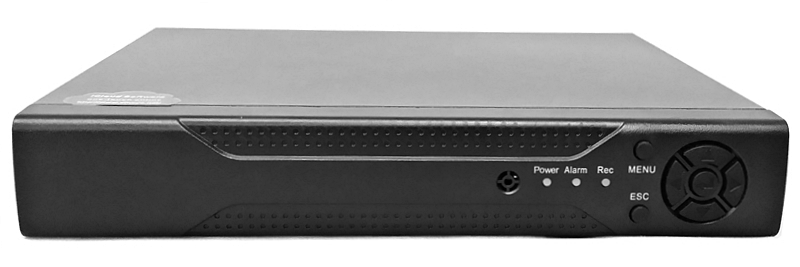

3 in 1 Latest 4 Channel AHD + DVR + NVR CCTV P2P HDMI Network HD Recorder Real Time Monitoring Via Smartphone / PC

AHD is much higher than traditional analog 960H
(Latest AHD 720P - Guarantee you never regret)

What is AHD DVR ?

In standard analog surveillance system, 960H is the highest resolution, to achieve much higher resolution becomes impossible mission for traditional surveillance system since its limitation from its technology.

AHD stands for analog high definition, AHD's birth, is to solve the transmission distance limitations of existing HD-SDI solution. As one of new HD analog solution, AHD supports video transmission over traditional 75-3 coaxial cable up to 500 meters, and it becomes another alternative for HD analog solution. By the way, it inherits and carries forward advantages of traditional analog solution, video signal are uncompressed, keep all the original video details, to truly achieve high definition uncompressed lossless, no video latency effect.

Similar to other HD analog solutions, through using the progressive scan CMOS image sensor, the AHD camera can deliver 1.0 megapixel, 1.3 megapixel, 2 megapixel resolution which unable to do on traditional DVR, added with ICR filter, the camera achieve true day/night video surveillance; and same like the traditional analog system, AHD products support plug-and-play installation, easy to use.

There are three AHD Formats

AHD - L definition (TVL) is much higher than traditional analog 960H and slightly lower than the network HD 720P;
AHD - M definition (TVL) is equivalent to the network level of HD 720P;
AHD - H definition (TVL) is equal to all network hd 1080 p hd level;

AHD camera module performance is stable, high definition AHD analog graphics, compatible with the traditional analog hard disk video recorder, convenient and quick, applies to the bank, roads and hospitals, high requirements for video monitoring, can also be applied to general monitoring sites, such as region, supermarkets, family is the perfect combination of practical and economical, is truly the hd populist extreme experience. We have reasons to believe that, AHD will emerge in the era of hd, become the powerful booster high-definition monitor rapid development!

AHD DVR Outlook: Depending on existing stock

Features:

• Latest 3in1 4 Channel AHD + DVR + NVR CCTV Recorder
• AHD is much higher than traditional analog 960H
• AHD provide non delay real time monitoring comparing Network NVR system
• AHD can supports video transmission over traditional 75-3 coaxial cable up to 500 meters
• Support smart phone remote playback

• Support Multi Channel View

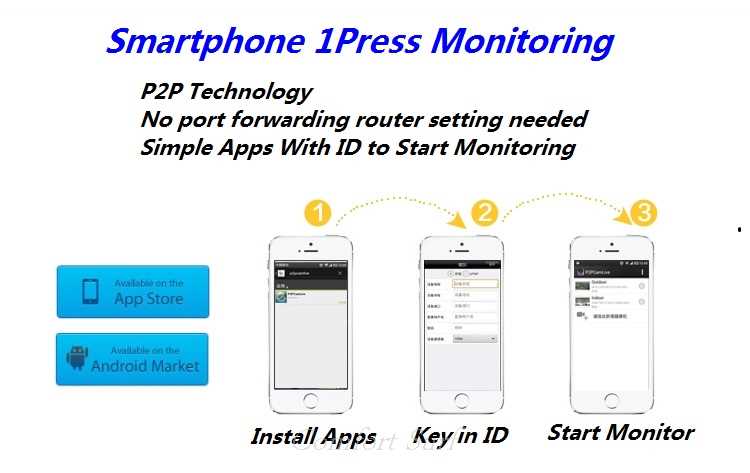

• Support P2P function, No need setting router
• Most Simple Setup / same as traditional DVR
• Existing traditional DVR cabling can be use.

• Support Smart phone, Computer Monitoring
• Support VGA/HDMI Video Output
• Come with 4 Port Audio in Function

Specification:

• Operating CPU: HI3520 CPU
• Preview: PAL: AHD-M (1280*720); NTSC: AHD-M (1280*720)
• Full real-time encoding capability
• Motion detection: Each screen can be set to 396 (22 * 18) detection areas; multi-level sensitivity can be set (only local channels)
• Recording: Manual> Alarm> Motion Detection> Schedule
• Playback: Single Channel or Multi Channel
• Playback Search: Search by Time or by Channel
• Take up hard disk space Video: Video CIF: 2.5GB/day/Channel, D1: 8 ~ 10G / day/Channel, WD1: 12G/day/Channel, AHD: 25G/day/Channel, audio 691.2M / day/Channel
• Recording modes: Manual recording, motion detection recording and pre-set timer
• Audio: With audio and video synchronization, clear sound and smooth, no noise
• Audio input: 4 Channel RCA
• Audio output: 1 Channel RCA
• Video output: VGA, HDMI
• HDD maximum support: 4TB
• Resolution: supports multiple resolutions
• Power Input: DC 12V 2A (a dedicated power supply)
• VGA resolution support: 1280X1024
• Network Interface: RJ45 (10M / 100M adaptive)
• Communication interface: RS485 (PTZ), USB2.0 × 2
• HDD Interface: 1 (serial port only supports SATA2 HDD)
• USB Interface: Support USB mouse, U disk backup, USB mobile hard disk
• Screen Display: 1,4-screen display
• Control Interface: 1 RS485 interface
• Mobile Remote: Support
• Mobile Apps: NVSIP

• Weight: about 2.2kg
• Product list: DVR (without hard disk)

DIY at our OWN
Installation is very simple. No special tools needed, all you need is screw driver and insulation tape. You can always call our office if have any difficulty during installation.

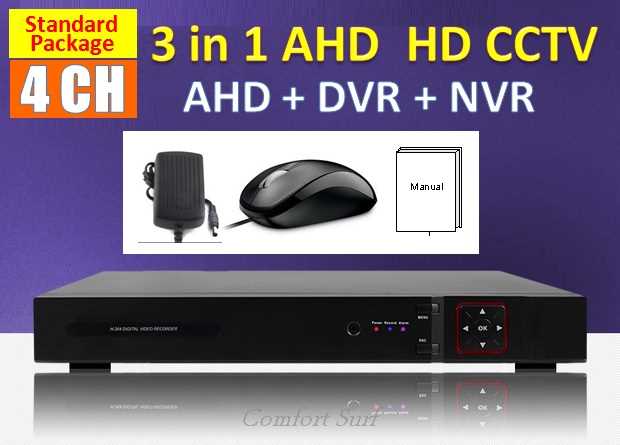

	RM190 (not include postage) 1 x 3in1 AHD 4CH CCTV DVR (pls note every batch stock outlook design may little vary, the unit you received finalized as latest design) 1 x Mouse 1 x Power Supply 1 x User Manual 1 x e-CD, please download from the link given: http://www.cd-ipc.com/dvr/index_en.html

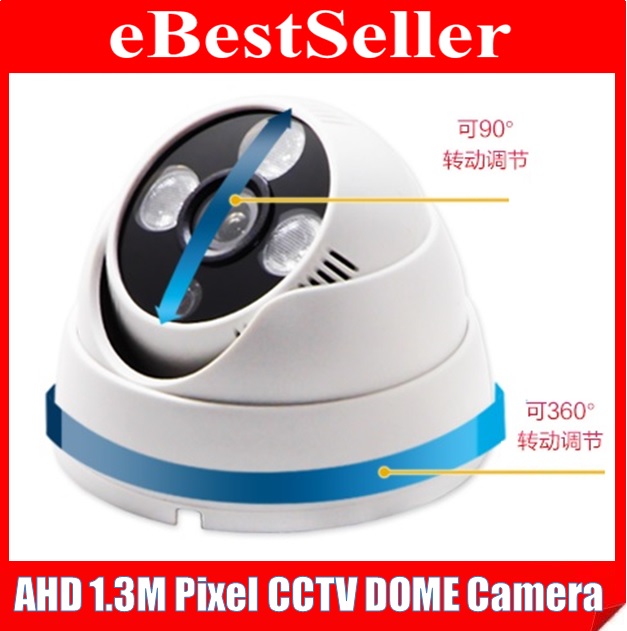

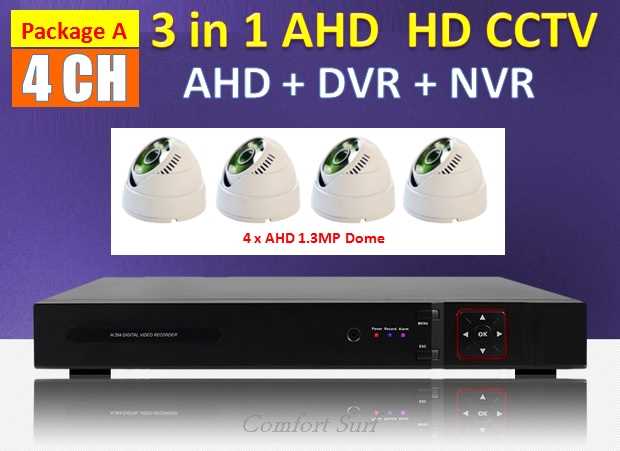

	Package A RM490 (not include postage) 1 x Standard Package 4CH AHD DVR (pls note every batch stock outlook design may little vary, the unit you received finalized as latest design) 4 x AHD Dome 1.3MP (SecurEyes SE-320AHD-130W)

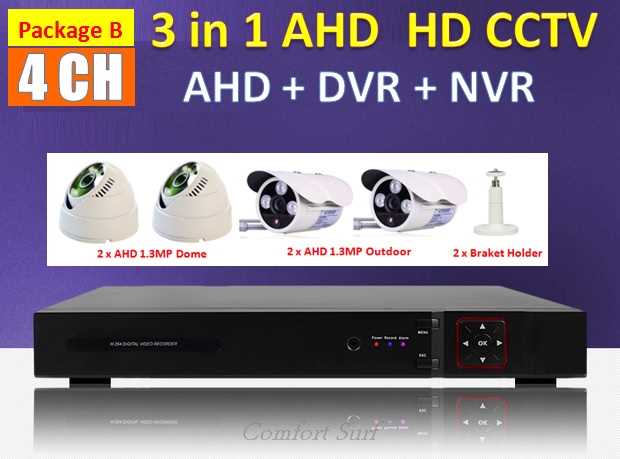

	Package B RM550 (not include postage) 1 x Standard Package 4CH AHD DVR (pls note every batch stock outlook design may little vary, the unit you received finalized as latest design) 2 x AHD Dome 1.3MP (SecurEyes SE-320AHD-130W) 2 x AHD Outdoor 1.3MP (SecurEyes SE-420AHD-130W) 2 x CCTV Holder
	Package C RM650 (not include postage) 1 x Standard Package 4CH AHD DVR (pls note every batch stock outlook design may little vary, the unit you received finalized as latest design) 4 x AHD Dome 1.3MP (SecurEyes SE-320AHD-130W) 1 x 12V 5A Power Supply (SecurEyes_60W_12V5A) 4 x 15meter 2 in 1 Ready Connector Cable 1 x 4 in 1 Power Connector Cable
	Package D RM710 (not include postage) 1 x Standard Package 4CH AHD DVR (pls note every batch stock outlook design may little vary, the unit you received finalized as latest design) 2 x AHD Dome 1.3MP (SecurEyes SE-320AHD-130W) 2 x AHD Outdoor 1.3MP (SecurEyes SE-420AHD-130W) 1 x 12V 5A Power Supply (SecurEyes_60W_12V5A) 4 x 15meter 2 in 1 Ready Connector Cable 1 x 4 in 1 Power Connector Cable 2 x CCTV Holder

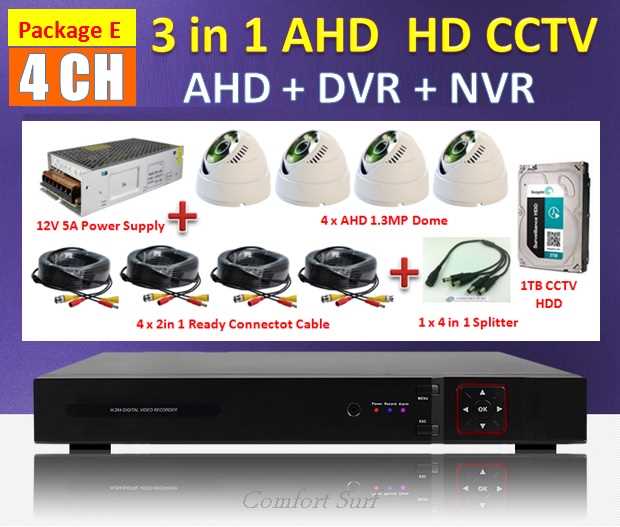

	Package E RM910 (not include postage) 1 x Standard Package 4CH AHD DVR (pls note every batch stock outlook design may little vary, the unit you received finalized as latest design) 1 x 1TB Seagate Surveillance (Special HDD for CCTV) 4 x AHD Dome 1.3MP (SecurEyes SE-320AHD-130W) 1 x 12V 5A Power Supply (SecurEyes_60W_12V5A) 4 x 15meter 2 in 1 Ready Connector Cable 1 x 4 in 1 Power Connector Cable
	Package F RM970 (not include postage) 1 x Standard Package 4CH AHD DVR (pls note every batch stock outlook design may little vary, the unit you received finalized as latest design) 1 x 1TB Seagate Surveillance (Special HDD for CCTV) 2 x AHD Dome 1.3MP (SecurEyes SE-320AHD-130W) 2 x AHD Outdoor 1.3MP (SecurEyes SE-420AHD-130W) 1 x 12V 5A Power Supply (SecurEyes_60W_12V5A) 4 x 15meter 2 in 1 Ready Connector Cable 1 x 4 in 1 Power Connector Cable 2 x CCTV Holder

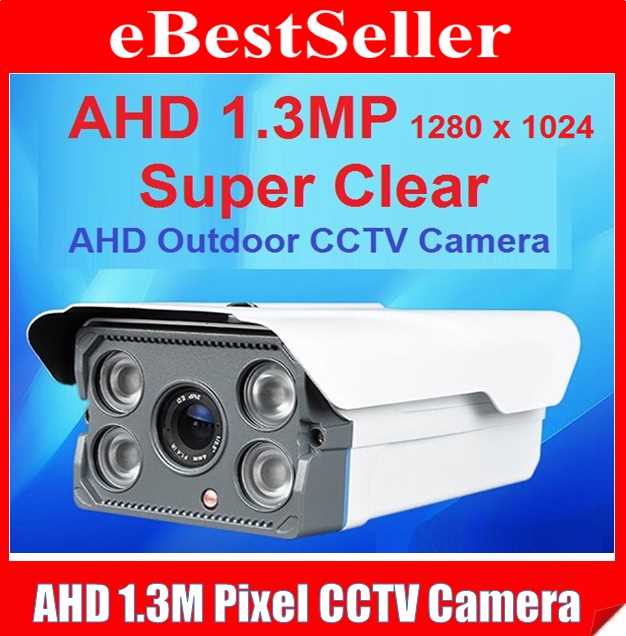

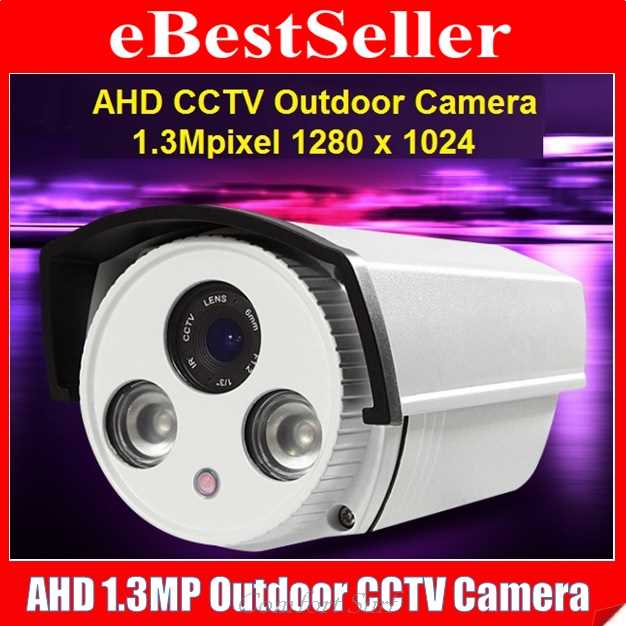

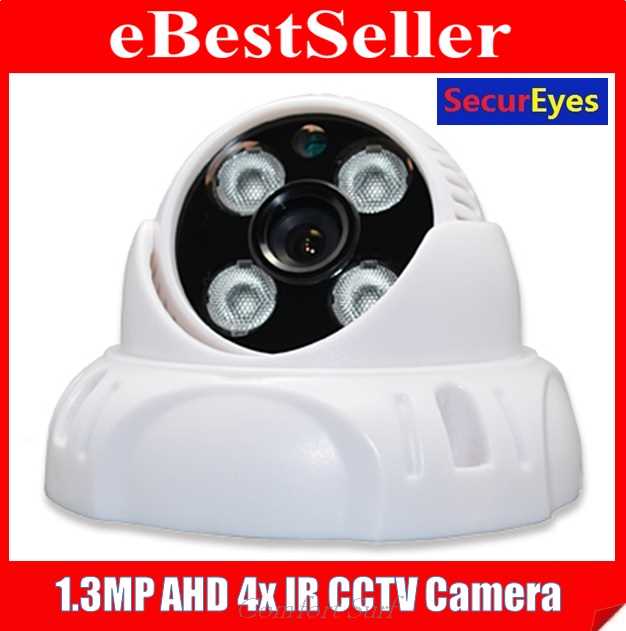

Optional Upgrade: ** You can upgrade the dome camera to higher spec camera and upgrade to better power supply. ** Please contact us for item you want to upgrade/add on, we will calculate total for you. Option Upgrade 1: Add RM30/pcs Upgrade to Better SecurEyes AHD Outdoor 1.3MPixel (SE-420AHD-130W) - New Generation 3pcs IR ARRAY LAMP for Better Night vision & Longer Life Span - Waterproof and weather proof, Suitable for Outdoor Use.. - Free 1 x Small Holder Leg Upgrade to Option Upgrade 2: Add RM40/pcs Upgrade to Better SecurEyes AHD Dome 1.3Mpixel (SE-380AHD-130W) - New Generation 4 IR ARRAY LAMP for Better Night vision & Longer Life Span Upgrade to Option Upgrade 3: Add RM50/pcs Upgrade to Best Outdoor SecurEyes AHD Dome 1.3Mpixel (SE-620AHD-130W) - Taiwan imported light board, high imaging sensitivity, clear picture quality. - 3rd Generation 2 Big IR ARRAY LAMP for Better Night vision & Longer Life Span - Waterproof and weather proof, Suitable for Outdoor Use.. - Free 1 x Small Holder Leg Upgrade to Option Upgrade 4: Add RM70/pcs Upgrade to Best Outdoor SecurEyes AHD Outdoor 1.3Mpixel (SE-820AHD-130W) - High imaging sensitivity, clear picture quality, strong magnetic interference, long service life. - 4pcs Big Strong IR Lamp for Better Night vision & Longer Life Span - Waterproof and weather proof, Suitable for Outdoor Use.. - AHD 1.3Mpixel High Resolution - Free 1 x Big Holder Leg Upgrade to Option Upgrade 5: Add RM120/pcs Upgrade to Cashier Dedicated Camera SecurEyes AHD Outdoor 1.3Mpixel (SE-908AHD-130W) - High imaging sensitivity, clear picture quality, strong magnetic interference, long service life. - Manual Adjustable Lens 2.8mm ~ 12mm - For enviroment that need to zoom in out to focus at different point. - AHD 1.3Mpixel High Resolution - Free 1 x Big Holder Leg Upgrade to Option Upgrade 6 (highly recommended): Add RM70 Upgrade to Better Power Supply SecurEyes 4 Channel 12V 3A Iron Box (CCTV_12V3A_4CH_PowerSupply_Box) - Professional Power Supply with safety iron box (key included) - More stable, Durable, Designed for CCTV, Heavy Duty. - Each channel protected by a fuis, good for device ** Note: If taking this upgrade option, the CCTV 4 in 1 cable & Female Power connector (in option upgrade 8) will automatic not given because both is not using... Upgrade to Option Upgrade 7: Add RM150 Upgrade HDD 1TB to 2TB Seagate / WD Surveillance HDD - Special Hardisk for CCTV Use Upgrade to 2TB Option Upgrade 8: Add RM70/pcs Upgrade 4x Ready Connector Cable Upgrade to 100meter 2 in 1 CCTV Coaxial Cable + 9pcs BNC Plug + 4pcs Male Power Connector + 4pcs Female Power Connector

AHD CCTV DVR & AHD CCTV Camera comes with 3 Month Warranty

Reseller or Drop shipping reseller are welcomed..!!
