ITEM:
Brand: SecurEyes
Model: CCTV_8CH_AHD_3in1
3
in 1 Latest 8
Channel AHD + DVR + NVR CCTV P2P HDMI
Network HD Recorder Real Time Monitoring Via Smartphone / PC
AHD
is much higher than traditional analog 960H
(Latest AHD 720P)
What is AHD DVR ?
In standard analog surveillance system, 960H is the highest
resolution, to achieve much higher resolution becomes impossible
mission for traditional surveillance system since its limitation from
its technology.
AHD stands for analog high definition, AHD's birth, is to
solve the
transmission distance limitations of existing HD-SDI solution. As one
of new HD analog solution, AHD supports video transmission over
traditional 75-3 coaxial cable up to 500 meters, and it becomes another
alternative for HD analog solution. By the way, it inherits and carries
forward advantages of traditional analog solution, video signal are
uncompressed, keep all the original video details, to truly achieve
high definition uncompressed lossless, no video latency effect.
Similar to other HD analog solutions, through using the
progressive
scan CMOS image sensor, the AHD camera can deliver 1.0 megapixel, 1.3
megapixel, 2 megapixel resolution which unable to do on traditional
DVR, added with ICR filter, the camera achieve true day/night video
surveillance; and same like the traditional analog system, AHD products
support plug-and-play installation, easy to use.
There are three AHD
Formats
AHD - L definition (TVL) is much higher than traditional
analog 960H and slightly lower than the network HD 720P;
AHD - M definition (TVL) is equivalent to the network level of HD 720P;
AHD - H definition (TVL) is equal to all network hd 1080 p hd level;
AHD camera module performance is stable, high definition AHD analog
graphics, compatible with the traditional analog hard disk video
recorder, convenient and quick, applies to the bank, roads and
hospitals, high requirements for video monitoring, can also be applied
to general monitoring sites, such as region, supermarkets, family is
the perfect combination of practical and economical, is truly the hd
populist extreme experience. We have reasons to believe that, AHD will
emerge in the era of hd, become the powerful booster high-definition
monitor rapid development!
AHD DVR Outlook: Depending on
existing stock
1.
2.

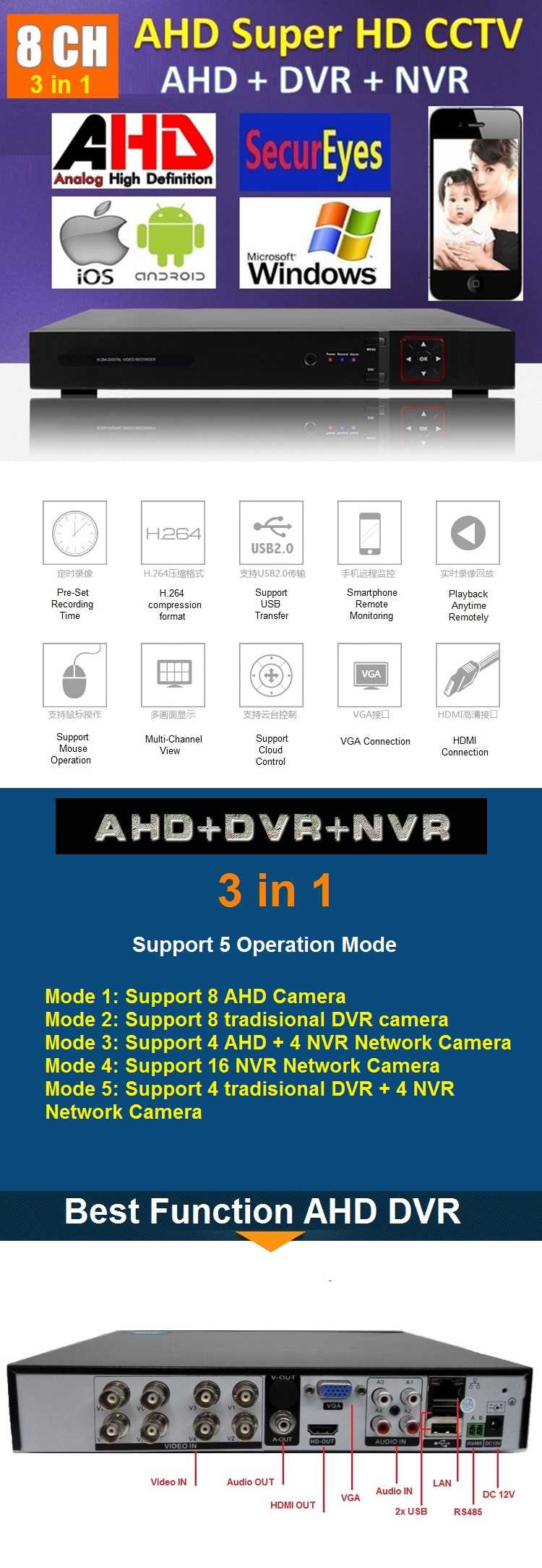

Features:
- Latest 3in1 8 Channel AHD + DVR + NVR CCTV Recorder
- AHD is
much higher than traditional analog 960H
- AHD
provide non delay real time monitoring comparing Network NVR system
- AHD can
supports video transmission over traditional 75-3 coaxial cable up to
500 meters
- Support
smart phone remote playback
- Support
Multi Channel View
- Support
P2P function, No need setting router
- Most
Simple Setup / same as traditional DVR
- Existing
traditional DVR cabling can be use.
- Support
Smart phone, Computer Monitoring
- Support
VGA/HDMI Video Output
- Come
with 4 Port Audio in Function
Specification:
- Operating CPU: HI3521
CPU
- Preview: PAL: AHD-M (1280*720);
NTSC: AHD-M (1280*720)
- Full real-time encoding
capability
- Motion detection: Each screen can be set to 396 (22 * 18) detection areas; multi-level sensitivity can be set (only local channels)
- Recording: Manual>
Alarm> Motion Detection>
Schedule
- Playback: Single Channel
or Multi Channel
- Playback
Search: Search by Time or by Channel
- Take up hard disk space Video: Video CIF: 2.5GB/day/Channel, D1: 8 ~ 10G / day/Channel,
WD1: 12G/day/Channel, AHD: 25G/day/Channel, audio 691.2M / day/Channel
- Recording modes: Manual recording, motion detection recording and pre-set timer
- Audio: With audio and video synchronization, clear sound and smooth, no noise
- Audio input: 4 Channel RCA
- Audio output: 1 Channel RCA
- Video input : 8 BNC
- Video output: VGA, HDMI
(Support 1920*1080P)
- HDD maximum support: 4TB
- Resolution: supports multiple resolutions
- Power Input:
DC 12V 2A (a dedicated power supply)
- Network Interface: RJ45
(10M / 100M
adaptive)
- Communication interface: RS485 (PTZ),
USB2.0 × 2
- HDD Interface: 1 (serial port only supports SATA2 HDD)
- USB Interface: Support USB mouse, U disk backup, USB mobile hard disk
- Screen Display: 1,4-screen
display
- Control Interface: 1 RS485 interface
- Mobile Remote: Support
- Mobile
Apps: NVSIP
- Weight: about 2.2kg
- Product list: DVR (without hard disk)
DIY
at our OWN
Installation is very simple. No special tools needed, all you need is
screw driver and insulation tape. You can always call our office if
have any difficulty during installation.

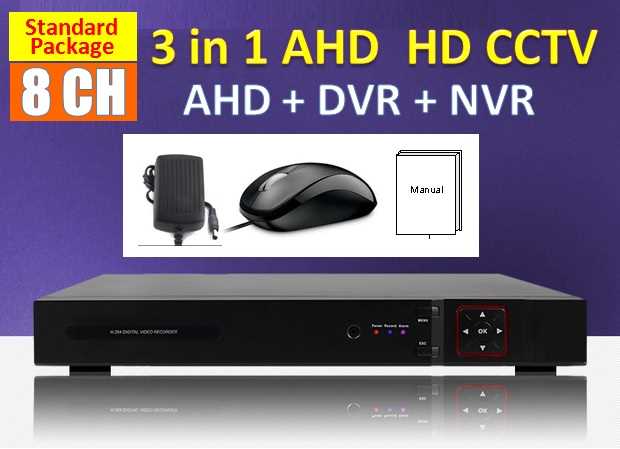

Packages Selection:
 |
RM295
(not include postage)
- 1 x 3in1 AHD 8CH CCTV DVR (pls note
every batch stock outlook design may little vary, the unit you received
finalized as latest design)
- 1 x Mouse
- 1 x Power Supply
- 1 x User Manual
- 1 x e-CD, please download from the link given:
- http://www.cd-ipc.com/dvr/index_en.html
|
 |

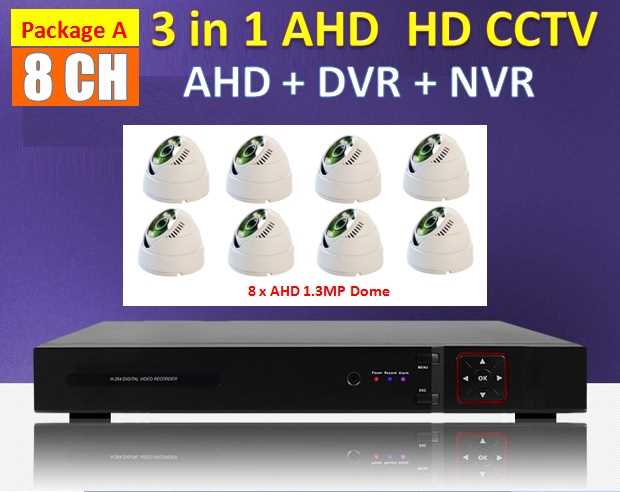

Package A
RM895
(not include postage)
- 1 x Standard Package 8CH AHD DVR (pls
note every batch stock outlook design may little vary, the unit you
received finalized as latest design)
- 8 x AHD Dome 1.3MP (SecurEyes SE-320AHD-130W)
|
 |

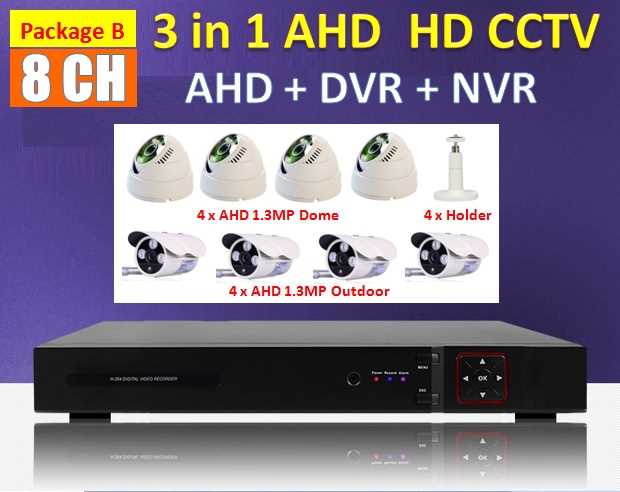

Package B
RM1015
(not include postage)
- 1 x Standard Package 8CH AHD DVR (pls
note every batch stock outlook design may little vary, the unit you
received finalized as latest design)
- 4 x AHD Dome 1.3MP (SecurEyes SE-320AHD-130W)
- 4 x AHD Outdoor 1.3MP (SecurEyes SE-420AHD-130W)
- 4 x CCTV Holder
|
 |

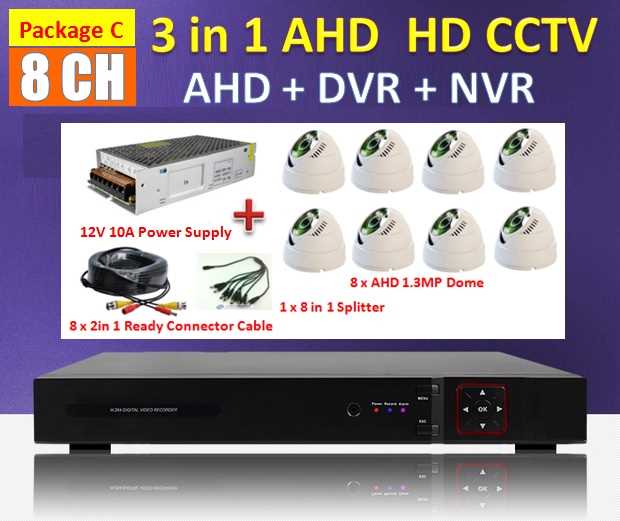

Package C
RM1095
(not include postage)
- 1 x Standard Package 8CH AHD DVR (pls
note every batch stock outlook design may little vary, the unit you
received finalized as latest design)
- 8 x AHD Dome 1.3MP (SecurEyes SE-320AHD-130W)
- 1 x 12V 10A Power Supply (SecurEyes_120W_12V10A)
- 8 x 15meter 2 in 1 Ready Connector Cable
- 1 x 8 in 1 Power Connector Cable
|
 |

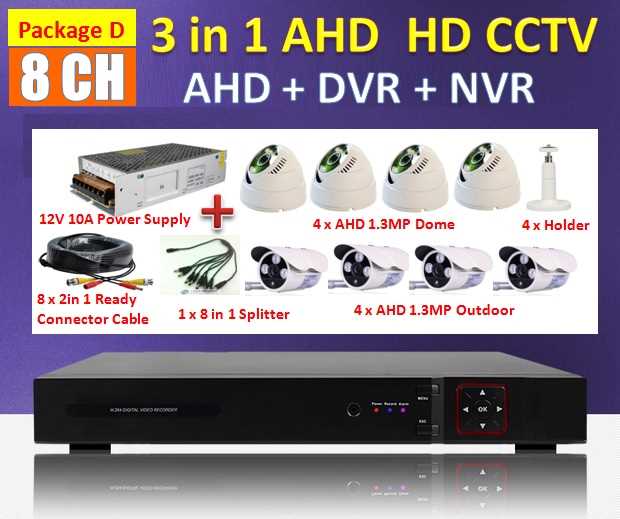

Package D
RM1215 (not
include postage)
- 1 x Standard Package 8CH AHD DVR (pls
note every batch stock outlook design may little vary, the unit you
received finalized as latest design)
- 4 x AHD Dome 1.3MP (SecurEyes SE-320AHD-130W)
- 4 x AHD Outdoor 1.3MP (SecurEyes SE-420AHD-130W)
- 1 x 12V 10A Power Supply (SecurEyes_120W_12V10A)
- 8 x 15meter 2 in 1 Ready Connector Cable
- 1 x 8 in 1 Power Connector Cable
- 4 x CCTV Holder
|
 |

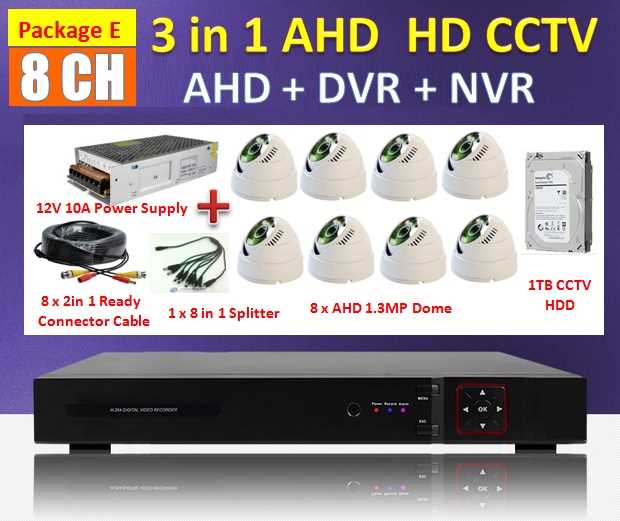

Package E
RM1345
(not include postage)
- 1 x Standard Package 8CH AHD DVR (pls
note every batch stock outlook design may little vary, the unit you
received finalized as latest design)
- 1 x 1TB Seagate Surveillance (Special HDD
for CCTV)
- 8 x AHD Dome 1.3MP (SecurEyes SE-320AHD-130W)
- 1 x 12V 10A Power Supply (SecurEyes_120W_12V10A)
- 8 x 15meter 2 in 1 Ready Connector Cable
- 1 x 8 in 1 Power Connector Cable
|
 |

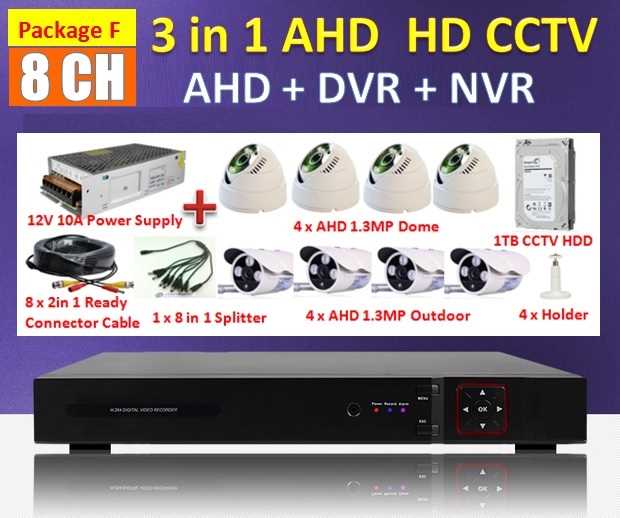

Package F
RM1465
(not include postage)
- 1 x Standard Package 8CH AHD DVR (pls
note every batch stock outlook design may little vary, the unit you
received finalized as latest design)
- 1 x 1TB Seagate Surveillance (Special HDD for CCTV)
- 4 x AHD Dome 1.3MP (SecurEyes SE-320AHD-130W)
- 4 x AHD Outdoor 1.3MP (SecurEyes SE-420AHD-130W)
- 1 x 12V 10A Power Supply (SecurEyes_120W_12V10A)
- 8 x 15meter 2 in 1 Ready Connector Cable
- 1 x 8 in 1 Power Connector Cable
- 4 x CCTV Holder
|
|
Optional Upgrade:
**
You can upgrade the dome camera to higher spec camera and upgrade to
better power supply.
**
Please contact us at [email protected] for item you want to
upgrade/add on, we will calculate total for you.
Option
Upgrade 1: Add RM20/pcs
Upgrade to Better SecurEyes
AHD Outdoor 1.3MPixel (SE-420AHD-130W)
- New Generation 3pcs IR ARRAY LAMP for Better Night vision &
Longer Life Span
- Waterproof and weather proof, Suitable for Outdoor Use..
-
Free 1 x Small Holder Leg
 Upgrade
to
Option
Upgrade 2: Add RM40/pcs
Upgrade to
Better SecurEyes AHD Dome 1.3Mpixel (SE-380AHD-130W)
- New Generation 4 IR ARRAY LAMP for Better Night vision &
Longer Life Span
Upgrade to
Option
Upgrade 3: Add RM50/pcs
Upgrade to Best Outdoor
SecurEyes AHD Dome 1.3Mpixel (SE-620AHD-130W)
- Taiwan imported light board, high imaging sensitivity, clear picture
quality.
- 3rd Generation 2 Big IR ARRAY LAMP for Better Night vision &
Longer Life Span
- Waterproof and weather proof, Suitable for Outdoor Use..
-
Free 1 x Small Holder Leg
Upgrade to
Option
Upgrade 4: Add RM70/pcs
Upgrade to Best Outdoor
SecurEyes AHD Outdoor 1.3Mpixel
(SE-820AHD-130W)
- High imaging sensitivity, clear picture quality, strong magnetic
interference.
- 4pcs Big Strong IR Lamp for Better Night vision & Longer Life
Span
- Waterproof and weather proof, Suitable for Outdoor Use..
- AHD 1.3Mpixel High Resolution
-
Free 1 x Big Holder Leg
Upgrade to
Option
Upgrade 5: Add RM120/pcs
Upgrade to Cashier Dedicated Camera SecurEyes AHD Outdoor 1.3Mpixel
(SE-908AHD-130W)
- High imaging sensitivity, clear picture quality, strong magnetic
interference, long service life.
- Manual Adjustable Lens 2.8mm ~ 12mm
- For enviroment that need to zoom in out to focus at different point.
- AHD 1.3Mpixel High Resolution
-
Free 1 x Big Holder Leg
Upgrade to
Option
Upgrade 6 (highly recommended): Add RM70
Upgrade to Better Power
Supply SecurEyes 9 Channel 12V 10A Iron Box
(CCTV_12V10A_9CH_PowerSupply_Box)
- Professional Power Supply with safety
iron box (key included)
- More stable, Durable, Designed for CCTV, Heavy Duty and higher rating
10A
- Each channel protected by a fuis, good for device
** Note: If taking this upgrade option, the CCTV 8 in 1
cable &
Female Power connector (in option upgrade 7) will automatic not given
because both is not using...
 Upgrade
to
Option
Upgrade 7: Add RM150
Upgrade HDD 1TB to 2TB
Seagate / WD
Surveillance HDD - Special Hardisk for CCTV Use
 Upgrade
to 2TB
Option
Upgrade 8: Add RM60/pcs
Upgrade 8x Ready Connector Cable
Upgrade to
100meter 2 in 1 CCTV Coaxial Cable + 17pcs BNC Plug + 8pcs Male Power
Connector + 8pcs Female Power Connector
If
need other CCTV or Alarm Accessories, please refer below link:
http://www.lelong.com.my/merchant/ebestseller-CCTV.amp;.Security.Alarm-C1-165894-1.htm
|
AHD CCTV DVR & AHD
CCTV Camera comes with 3 Month Warranty
Reseller or Drop shipping
reseller are welcomed..!!
