35dBi (17.5dBi x 2) Dual SMA / TS9 / CRC9 Port x2 Mimo 4G LTE Antenna

Main Product: True
            Brand: Antenna

35dBi (17.5dBi x 2) Dual SMA / TS9 / CRC9 Port x2 Mimo 4G LTE Antenna

Market Price: MYR 200.00
Buy more to get lower price
1 - 1 units MYR 69.00
2 - 4 units MYR 65.50
5 - 10 units MYR 63.90
11 - 20 units MYR 62.60

peninsular
sabah MYR 6.00
sarawak MYR 5.00



Share with friend.

Share on Facebook share pn Twitter
Buy Now: MYR 69.00
Retail Price: MYR 64.00


Option:
Qty:
  How to Buy?
  432 Sold since Nov-2013



ITEM:
Model: Dual LTE Antenna

35dBi (17.5dBi x 2) Dual SMA / TS9 / CRC9 Port x2 Mimo Original LTE 4G Antenna for Sierra Wireless / Huawei LTE Modem

Support All 2G 3G WCDMA HSPA 4G LTE USB MODEM /Mifi Router

Choice of TS9 / CRC9 / MC Card / SMA Male Connector available.


35dbi(17.5dbi x 2) Dual SMA/TS9 Connector 4G Antenna



  • 35dbi(17.5dbi x 2) high gain 4G LTE antenna with two SMA or TS9 connectors or CRC9
  • External antenna for 4G LTE modem and 4G routers with two SMA/TS9 slots
  • Cable length: 2m
  • Polarization type: vertical

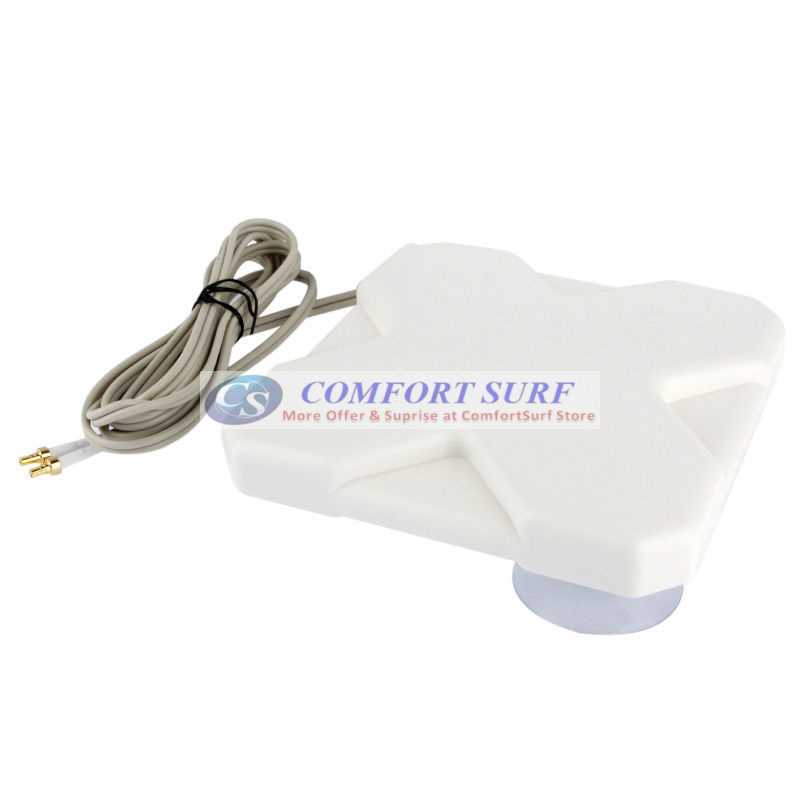

35dBi (17.5dBi x 2) Dual SMA / TS9 / CRC9 Port x2 Mimo Original LTE 4G Antenna for Sierra Wireless / Huawei LTE Modem
35dBi (17.5dBi x 2) Dual SMA / TS9 / CRC9 Port x2 Mimo Original LTE 4G Antenna for Sierra Wireless / Huawei LTE Modem

LTE external antenna overview

This 35dbi(17.5dbi x2) high gain 4G LTE antenna is ideal suited for providing and/or improving reception for your 4G LTE modem and 4G router with two SMA or TS9 connectors. It will help increase 4G signal strength and increase data transfer speed for your 4G devices! Please buy it with corresponding connectors or converters.

4G LTE antenna specs:

Frequency Range:
791~821MHz/832~862MHz/1710~1785MHz/1805~1880MHz/2500~2570MHz/2620~2690MHz
VSWR:<= 2.5
Gain: 35dBi (17.5dbi + 17.5dbi)
Polarization Type: Vertical
Radiation: Omni
Maximum Imput Power: 10W
Input Impedance: 50 Ohms
Connector Type: SMA or TS9 or CRC9 (two connectors)

Mounting types: Stand or suck on surface such as glass window
Sucker: diameter 5cm
Cable type: TG174(best) 100% cooper
Cable length: 2m
Dimension: 5.75 in x 5.75 in x 1.5 in (14.6 cm x 14.6 cm x 3.8 cm)

Weight: 230.7g
Color: White

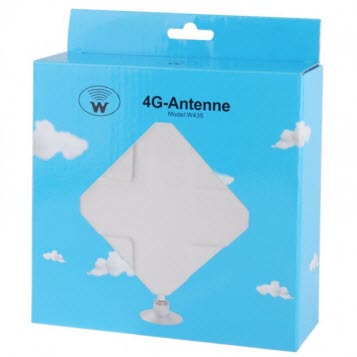

Package: 1 x 4G Antenna Dual Connector

original box for

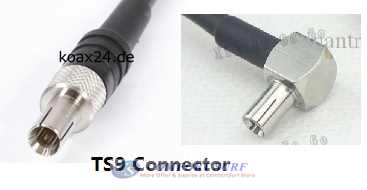

TS9 Connector Supported Models:
  • Huawei E398 K5005 E392 E589 E587 E5776 K5005 E398 760S
  • Sierra wireless 753S 754S 760S 312U 320U 2G 3G 4G LTE Antenna TS9
  • ZTE MF60 MF61 MF62 MF633+ MF645 MF633BP MF30(3G) MF60(3G) MF61(3G0 MF62(3G)
  • Telstra 760S (4G WiFi Modem)
  • Telstra 320U(4G USB Modem)
LTE Antenna TS9 Connector For Most Huawei / ZTE / Sierra Wireless USB Modem / Mifi Router

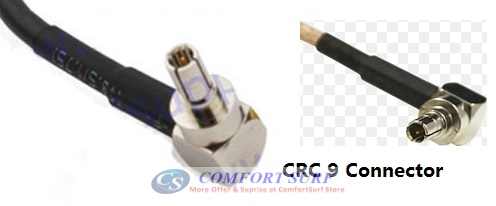

CRC9 Connector Supported Models:

  • Huawei - E122, E156, E156G, E160, E160E, E160G, E161, E169, E176, E176G, E182e, E196G
  • Huawei - E353, E355, E367,E372, E583C
  • Huawei - E600, E612, E613, E618, E620, E630, E660A, E881E
  • Huawei - E1612, E1762, E1820, E1823
  • Huawei - E3131
  • Huawei - EC321, EC881E,
  • Huawei - K3520, K4505, K4510, K4511, K4605
  • Huawei - UMG181, UMG1691, UMG 1831
  • Others CRC9 compatible model
  • **Celcom PortaWIFI same with Huawei E355

LTE Antenna CRC9 Connector For Most Huawei / ZTE / Sierra Wireless USB Modem / Mifi Router

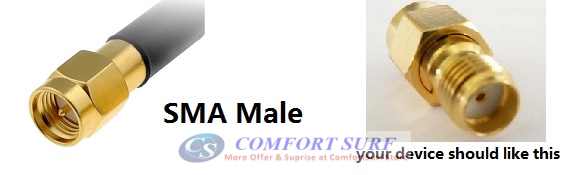

SMA Male Connector Supported Models:
  • For any device with SMA Female Connector.
LTE Antenna SMA Male Connector For Most Huawei / ZTE / Sierra Wireless USB Modem / Mifi Router



MC Card Connector Supported Models:
  • For any device with MC Card Connector.
LTE Antenna SMA Male Connector For Most Huawei / ZTE / Sierra Wireless USB Modem / Mifi Router




HUAWEI original 4G LTE Antenna Technical Specifications:
  • Frequency Range: 4G Frequency 698~960MHz /1710~2690MHz
  • 3G Frequency: 800~ 2200MHz
  • Cable Length: 3m
  • Antenna Height: 18 cm
  • Connector: TS-9 (Default) - Optional can choose others connector
  • Physical Support: Desk
  • Base: With Hanger Hole
  • VSWR:≤2.5
  • Polarization Type:Vertical
  • Radiation:Omni
  • Maximum Imput Power:10W
  • Input Impedance: 50 Ohms
  • Cable Type: RG174(best)100% cooper
  • Packaging - Plain box (May different batch by batch)

** Please select your require connector accordingly..

Standard Package Content:

  • 1 x Dual port LTE Antenna


Thanks for visit.

Reseller or Dropshipping reseller are welcomed..!!
