10 Meters 4G LTE UMTS 3G HSDPA Yagi Antenna 698 ~ 2170MHz, Gain 11dBi

Main Product: True
            Brand: OEM

10 Meters 4G LTE UMTS 3G HSDPA Yagi Antenna 698 ~ 2170MHz, Gain 11dBi

Market Price: MYR 280.00
Buy more to get lower price
1 - 1 units MYR 140.00
2 - 4 units MYR 130.70
5 - 10 units MYR 126.40
11 - 20 units MYR 123.00

peninsular
sabah MYR 26.00
sarawak MYR 22.00



Share with friend.

Share on Facebook share pn Twitter
Buy Now: MYR 140.00
Retail Price: MYR 128.00


Option:
Qty:
  How to Buy?
  80 Sold since Aug-2014



ITEM:

Model: LTE_Yagi_Antenna_11dBi

LTE_Yagi_ARL-698-2700-11

4G LTE UMTS 3G HSDPA Yagi Antenna 698 to 2170MHz, Gain 11dBi with 10 Meters Cable

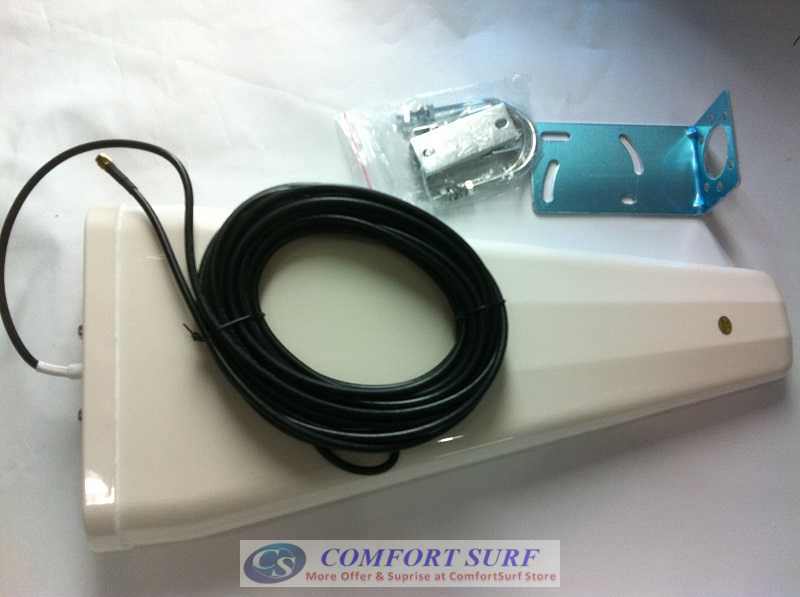

Comes with 10 meters RG58 Coaxial Cable

Yagi Antenna Signal Booster

For All LTE 4G 3G Usb Modem / 3G router


4G LTE UMTS 3G HSDPA Yagi Antenna 698 to 2170MHz, Gain 11dBi with 10 Meters Cable


4G LTE UMTS 3G HSDPA Yagi Antenna 698 to 2170MHz, Gain 11dBi with 10 Meters Cable

4G LTE UMTS 3G HSDPA Yagi Antenna 698 to 2170MHz, Gain 11dBi with 10 Meters Cable


4G LTE UMTS 3G HSDPA Yagi Antenna 698 to 2170MHz, Gain 11dBi with 10 Meters Cable

4G LTE UMTS 3G HSDPA Yagi Antenna 698 to 2170MHz, Gain 11dBi with 10 Meters Cable

4G LTE UMTS 3G HSDPA Yagi Antenna 698 to 2170MHz, Gain 11dBi with 10 Meters Cable

Antenna Type: Yagi Antenna


  • Model Model: LTE Yagi ARL-698-2700-11
  • Frequency Range Frequency Range 698-960 / 1710-2700-MHz
  • Bandwidth Bandwidth 262/990-MHz
  • Gain Gain 11-dBi
  • Beamwidth Beamwidth H: 65 / 50- ° E: 50 / 40- °
  • Front and rear than the F / B ratio ≥18-dB
  • VSWR VSWR ≤1.5
  • Vertical Vertical Polarization Polarization
  • Maximum power main rate Max power 100 -W
  • Input impedance Nominal Impedance 50 -Ω
  • Mechanical parameters MECHANICAL
  • Connector: SMA Male
  • Antenna Size Antenna Dimension
  • 410x215x65-mm
  • Weight Weight 1-kg
  • Wind strength Rated Wind Velocity 60-m / s
  • Mounting clips yards Mounting Kits L code and U codes L bracket & U bolts
  • Mounting hardware Mounting Mast Diameter Ф40-Ф50-mm

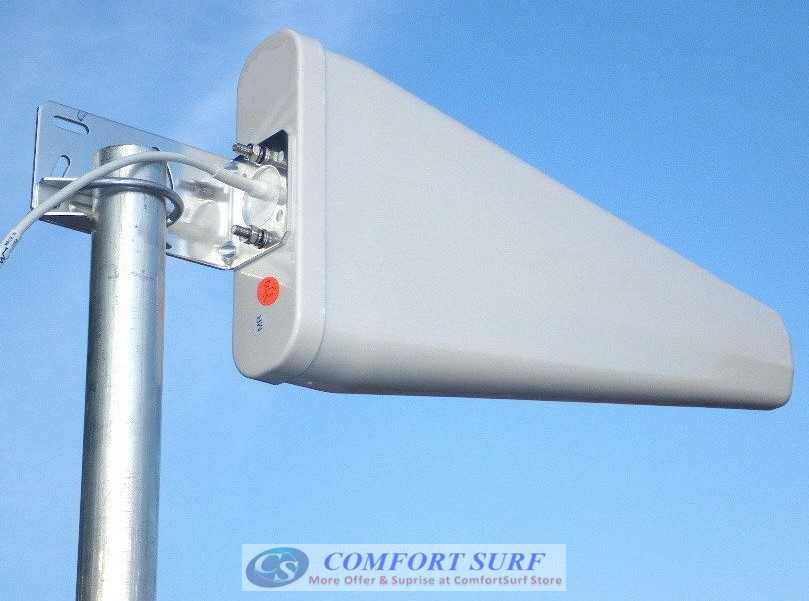

Note: Yagi Antenna is an outdoor antenna, It have to install at Outside (free area), best performance is without anything block in between antenna with source tower.

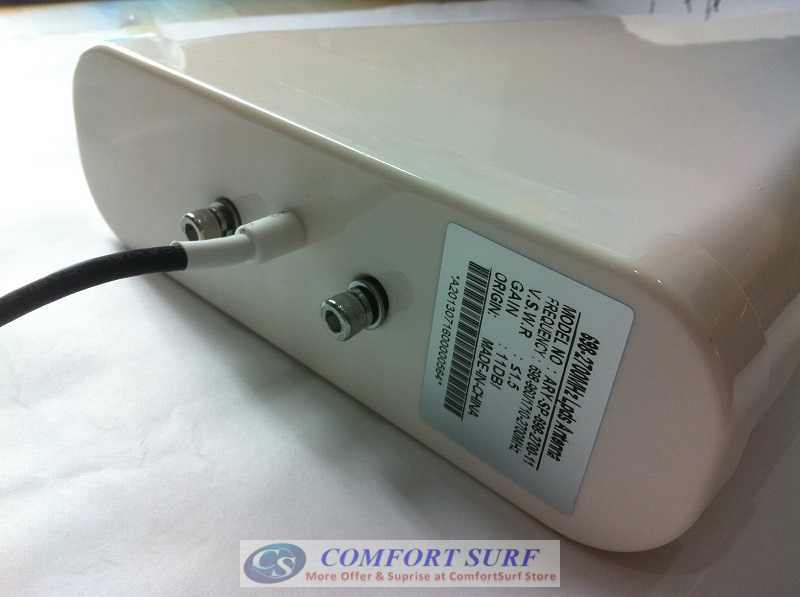

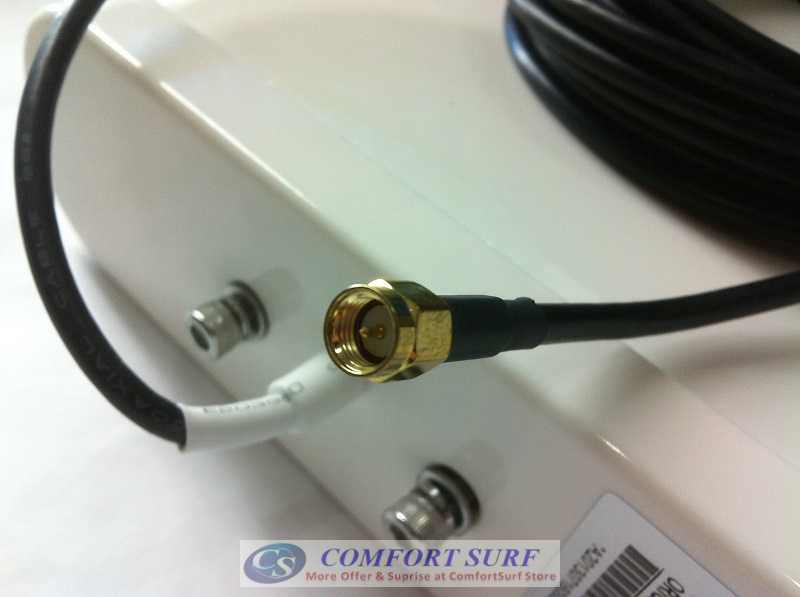

Connector on Antenna is SMA Male as per above picture.

Optional, you can choose Patch Lead Adapter Cable to suit your modem:

4G LTE UMTS 3G HSDPA Yagi Antenna 698 to 2170MHz, Gain 11dBi with 10 Meters Cable


SMA Female to TS9  Patch Lead Adapter Cable:
TS9 Connector Supported Models:
  • Huawei E398 K5005 E392 E589 E587 E5776 K5005 E398 760S
  • Sierra wireless 753S 754S 760S 312U 320U 2G 3G 4G LTE Antenna TS9
  • ZTE MF60 MF61 MF62 MF633+ MF645 MF633BP MF30(3G) MF60(3G) MF61(3G0 MF62(3G)
  • Telstra 760S (4G WiFi Modem)
  • Telstra 320U(4G USB Modem)
LTE Antenna TS9 Connector For Most Huawei / ZTE / Sierra Wireless USB Modem / Mifi Router

SMA Female to CRC9 Patch Lead Adapter Cable:
CRC9 Connector Supported Models:

  • Huawei - E122, E156, E156G, E160, E160E, E160G, E161, E169, E176, E176G, E182e, E196G
  • Huawei - E353, E355, E367,E372, E583C
  • Huawei - E600, E612, E613, E618, E620, E630, E660A, E881E
  • Huawei - E1612, E1762, E1820, E1823
  • Huawei - E3131
  • Huawei - EC321, EC881E,
  • Huawei - K3520, K4505, K4510, K4511, K4605
  • Huawei - UMG181, UMG1691, UMG 1831
  • Others CRC9 compatible model
  • **Celcom PortaWIFI same with Huawei E355

LTE Antenna CRC9 Connector For Most Huawei / ZTE / Sierra Wireless USB Modem / Mifi Router


SMA Female to IPX Patch Lead Adapter Cable:

IPX Connector



Optional Patch Lead Cable at RM18/pcs






Thanks for visit.

Reseller or Dropshipping reseller are welcomed..!!
