Original GPS106A Real Time GPS Tracker System /w Off Engine Oil Function

Main Product: True
            Brand: GPS

Original GPS106A Real Time GPS Tracker System /w Off Engine Oil Function

Market Price: MYR 399.00
Buy more to get lower price
1 - 1 units MYR 349.00
2 - 4 units MYR 337.00
5 - 10 units MYR 332.00
11 - 20 units MYR 327.00



Share with friend.

Share on Facebook share pn Twitter
Buy Now: MYR 349.00
Retail Price: MYR 342.00


Qty:
  How to Buy?
  108 Sold since Nov-2013


ITEM:

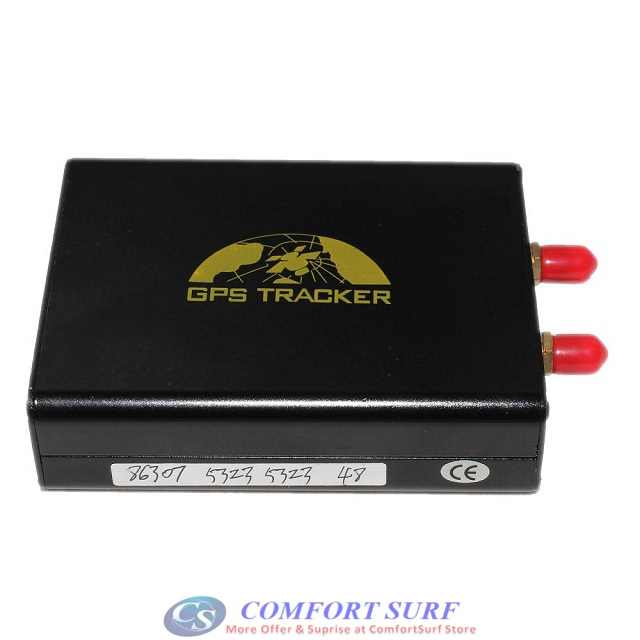

Model: GPS106A (Original)


New Version GPS 106A
Real Time Car Alarm GPS/GSM/GPRS Tracker Device with SD Card
(
Trace Location / Spy Listening )
Vehical / Car Tracking System



New Vehicle GPS Tracker GPS106A
A loyal guard for your Car-Professional vehicle tracking system

TK106A  is a Specially GPS Tracker alarm syctem for high-end  use on vehicles 12-24V.This product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet. It Support Camera, fuel sensor, remote control, cut off fuel. Used widely for vehicle and other moving objects tracking.



Best Vehical theft prevention and vehicle protection
Ability to Cut Off Car Engine Remotely




Note:
Only Original Unit will be able to use at www.gpstrackerxy.com. Clone unit will not allowed.
It controller by IMEI number.  Most of seller not provide this server service.. and some of them is not allowed to use the server if device is not Original.



GPS tracker GPS106A / B


Specification


1.High sensitive SIRFIII Star GPS Chipset and advanced  multi-band GSM module
2.GPS/GSM/GPRS/SMS connection
3.Remote control via mobile phone or computer
4.Fast signal acquisition
5.Excellent locating capability under weak signal enviroment
6.Locate single waypoint or track continuously
7.Locate at preset time interval or real time Living tracking on map
8.Send SOS message for emergency rescue
9.Send low power notification when battery will die out
10.Send over speed alarm when vehicle moves over restricted speed
11.Send geo-fence alarm when vehicle exits or enters restricted area
12.Cut off oil and power system remotely by SMS or website.Resume oil and power system remotely by SMS or website.
13.power on/off alarm by sms
14.Reset by SMS
15.Listening in
16.Fuel Alarm by SMS (available if fuel sensor chosen together / Fuel sensor need pre-order)
17.Arm,disarm ,silent mode
18.Door alarm ,ACC alarm
19.Location base station (LBS/Cell ID)


 GPS tracker GPS106A / B



There are 4 tracking solutions:


1.SMS tracking on cellphone with a googlemap link to view current location on map on cellphone screen.
2.Get absolute address by SMS
3.PC Installation software tracking.
4.Web server online tracking www.gpstrackerxy.com

A. Tracking via SMS on cellphone

GPS tracker GPS106A / B

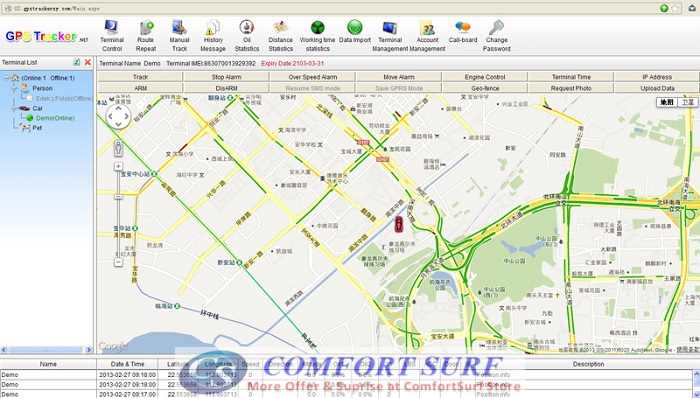

B. Tracking on website or PC software

Web-based GPS tracking system is charged USD$ 12 every year

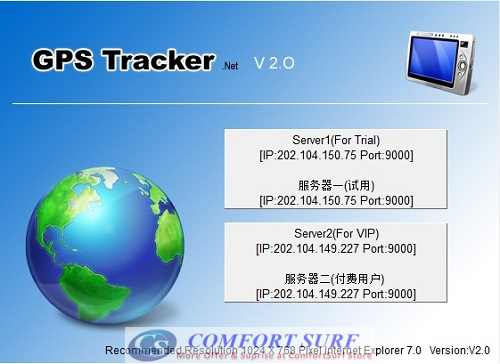

Free PC GPS tracking system,and function is same as web-based system


PC&website tracking system support 11 kinds language.
English,Portuguese,Spanish,Germany,Italian,Arabic,Thai,Polish,Herbrew,Persian,Chinese

Web-based tracking system:  www.gpstrackerxy.com

demo account---ID:demo   Password:  8888

GPS tracker GPS106A / B

GPS tracker GPS106A / B



c. Track on Google Earth

GPS tracker GPS106A / B



New Features and functions



Auto Storage  (Added function, GPS103 doesn't have this feature)
When the tracker device lost GSM signals or fall offline from GPRS, tracker will store the tracking position and alerts automatically in the SD card upon the pre-set condition, when GSM signals get back, all the event alerts will be auto-sent to the authorized numbers or monitoring platform (server), but the stored tracking data should be loaded to the monitoring platform via SMS command.

Location base station (LBS/Cell ID)
When the tracker device doesn’t received valid GPS signals, tracker will  positioning by GSM base station, the messages includes the GPS coordinates of  the last position, but the LAC in message is the current new position, you can  also send command “address+password” to tracker to get the newest absolute  address and GPS coordinates as well
tracker will automatically switch to track  by GSM base station in GPRS mode, and actualized on the map of web server with  LBS mark. And there may be some inaccuracy with actual location by LBS tracking;  the bias depends on GSM reception.

Absolute address with street name
You must set up the APN of your local GSM network for the SIM card in tracker  first before using this function, if there is user name and password for GPRS  login, Please refer to 6.31 and 6.32 to configure the APN, user name and  password for GPRS login.
After configure the APN, send “address+password” to device, it will reply SMS  including real street/address name. For example: No.8, Nantou Guankou 2nd Rd.  Nanshan district, Shenzhen, Guangdong, china

Photograph by Camera (Optional need to add camera)
When the tracker terminal device detects DOOR/ ACC / SOS / alarm, the tracker  device will be automatically ready for photograph when sending the alarm and  then shoot camera to upload the photo to the monitoring platform(web server),  The photo can be also requested by click menu “request photo” on the platform.

Alarms in GSM Blind Area
When vehicle enters GSM blind areas, the siren will sound in Non quite mode if  DOOR/SHOCK SENSOR/ACC, OIL alarms are triggered, and these alarms will be stored  and send to authorized numbers or web server after GSM signal recover.

Alarms
Low battery alarm, Power off alarm, SOS,Geo-fence ,Movement alarm, Over Speed Alarm.

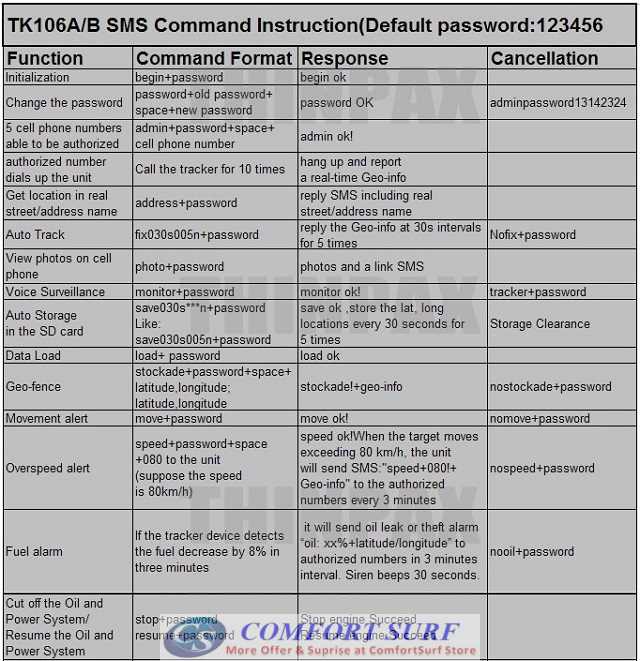

Check the Vehicle State
Send SMS command “check+password” to the tracker device in the vehicle, It will  reply the status of external power, battery, GPS, ACC, door, GSM reception and  oil consumption to the authorized numbers.
For example: Send SMS “check123456” to the tracker device in the vehicle, it  will reply following SMS after executed the command.
Power: ON/OFF
Battery: 100%
GPS: OK/NO GPS
ACC: OFF/NO
Door: OFF/NO
GSM Signal: (1-32) the higher digit it shows; the stronger of GSM reception it  receives.
Oil:100.00%

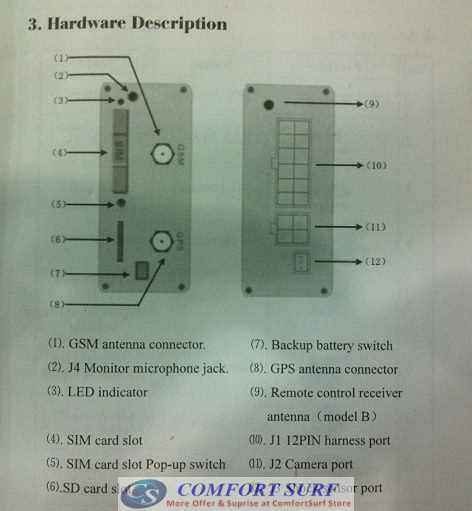

GPS tracker GPS106A / BGPS tracker GPS106A / B


Manufacturer Specifications

Content Specifications
DIM 85*71*26mm
Weight 170g
Network GSM/GPRS
Band 850/900/1800/1900Mhz
GSM/GPRS Module Sim900B
GPS Module SIRF3 chip
GPS Sensitivity -159dBm
GPS Accuracy 5m
GPS Start Time Cold status  45s,Warm status  35s,Hot status  1s
Applicable  vehicle power 12 V -24V
Backup Battery Chargeable changeable 3.7V  800mAh Li-ion battery
Storage Temp -40° C to +85° C
Operation Temp. -20° C to +65° C
Humidity 5%--95% non-condensing



Easily Installation


GPS tracker GPS106A / B

 GPS tracker GPS106A / B

GPS tracker GPS106A / B




What it can do for you and your vehicle:
  • Find Anyone! - place this device on an automobile, teenager, child, senior citizen, pet, you name it this device will follow it and tell you there exact location.
  • Remotely Cut Off Engine - Ability to cut off engine remotely.
  • Works with Most Cellular Carriers - use your existing cellular phones sim card, and your ready to go. The iTrack is Quad-Band GSM 850/900/1800/1900 Mhz and GPRS TCP/UDP compatible.
  • Extemely Precise - when locating this device on Google Earth its accurate within 15 feet.
  • Last 48 Hours - the iTrack can last up to 48 hours and possibly longer depending on settings. It takes only 3 hours to recharge the lithium battery
  • Lastest GPS Technology - SIRF STAR III GPS chipset with 20 Satellite Channels
  • Magnetic Cover included - most vendors would charge extra for this include, but we find it only fair to provide you with the proper accessories
  • FREE Tracking Software - this device is compatible with Google Earth, you dont need to pay any monthly software fees like other trackers. Software Available at: http://Earth.Google.com
  • Microphone: Remote spy listening/Spy Voice - track the person and listen the conversation surrounding the tracker.
  • Realtime GPRS or 20sec GSM - GPRS is in real-time up to the second and GSM can be set to text message every 20 seconds.


Additional Features:

-Remotely Cut Off Car Engine.
-Auto-Tracking: Setup the intervals you want the coordinance reported to you.
-Authorize up to 5 phone numbers to receive coordinance or manage device.
-SOS function: in emergencies press the SOS button and your location will be reported to the authorized numbers.
-Geo-Fence: Alert in case of breaching the predefined district area.
-Overspeed Limit: Setup a defined speed that you consider speeding and an alert can be triggered.
-Low Power Alert: iTracker will report its low battery several times before completely dieing.
-Shaking Alert: iTracker will detect if its in an accident and trigger an alert.
- Auto Save in MicroSD when GSM signal not available.
-Electronic Lock: If the unit is physically turned off, it will send an alert before hand.


Purpose/Possible Uses:

-Keep in your Car as an Anti-Theft system (Able to shutdown your car engine remotely)
-Vehicle rental / Fleet Management
- Company transportation monitoring
-Keep track of your Child, Teen, Elderly, or Handicaped.
-Voice Spy: Track and listen people converstation
-Catch your if your spouse is cheating.
-Track Staff on the road.
-Track a Criminal Offenders.
-Track valued product shippments.
-Track lost hikers,divers,skiers,sailers.
-
Great for private use, company car or rental fleet management



GPS Tracker TK103

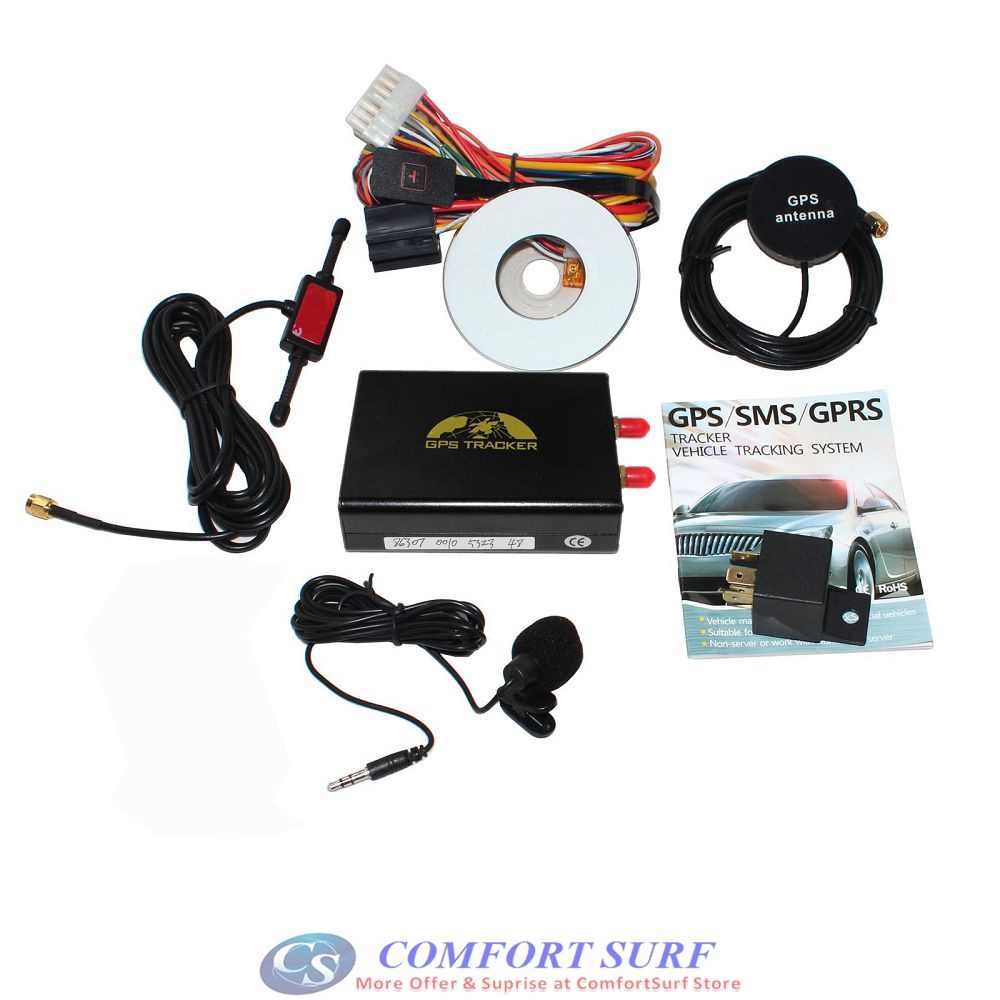

Package includes:

1 x GPS Tracker TK106A
1 x GPS Antenna
1 x GSM Antenna
1 x Cable
1 x Microphone
1 x Relay
1 x English manual
1 x CD
1 x Retail Box


GPS tracker GPS106A / B

FAQs Need your HIGH attention:

1. Q: If this tracker can work without a simcard?

A: This tracker is a combination of current GSM network and GPS positioning. A suitable simcard is a FIRST NECESSITY to make it work.

2. Q: Where can I find a Suitable simcard to make it work?

A: As mentioned above, a suitable simcard is required to make it work. But when you choose the simcard, you need to be CAREFUL in order not to waste money. The simcard should be a GSM network based.

3. How do I make sense of the longitude and latitude data this unit provides?
A.   Both Google Maps and Google Earth can easily translate the data into usable visual information.

4. The unit does not pick up a GSM signal and the SMS functions aren't working, what's wrong?
A.   A number of things could cause this to happen:
      1) Make sure the SIM card is compatible (only 2G, 2.5G, 2.75G SIM cards work)
      2) Make sure there is money left on the SIM card and that it has not expired
      3) Make sure there is no PIN code associated with the SIM card
      4) Make sure roaming is enabled on your SIM account if you are in a different country

5. Q: I CANNOT make it work. Both the tracker and user manual are complicated

A: The tracker comes with a certain technology, but it is a little far away from being told as complicated. About the user manual, it illustrates very detailed on each funcation, EVEN each correct command you should edit to send to tracker. You just need to spend some little patience reading it over. The user manual will NOT ONLY helps you get familiar with the tracker, BUT ALSO will help you do a CORRECT operation.  We are quite sure and very pleased to offer you technical support for any problem, BUT as long as you refer to use manual carefully, you must can make it work in perfect condition TOTALLY by yourself. You will enjoy this feeling.



Optional:

1. Online Live Monitoring Server Service:
You can login to server and live monitor your current vehicle route/direction at any pc anytime anywhere.
You can also check back the history of the vehicle route.
You also can add and monitor few GPS at the same time.
Only we can provide this optional service to our customer.
If you need this service, kindly contact us and we will give you more information. Thanks.

Please check at www.gpstrackerxy.com for server demo:
Login: demo, Password: 8888


Note:

Only Original Unit will be able to use at www.gpstrackerxy.com. Clone unit will not allowed.
It controller by IMEI number. Most of seller not provide this server service.. and some of them is not allowed to use the server if device is not Original.

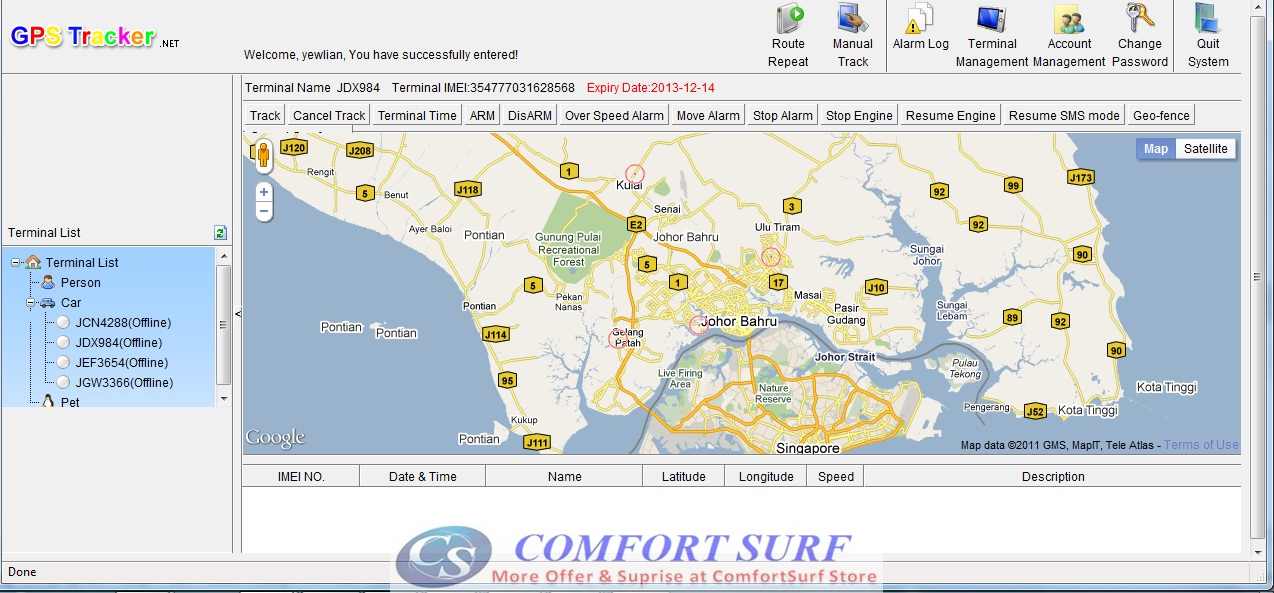

Below is the example of web server tracking:


GPS Live Tracking

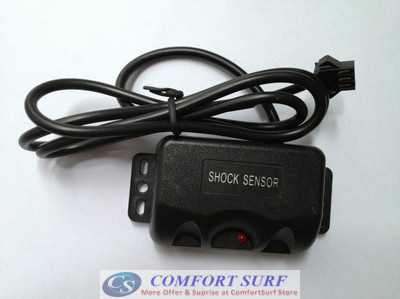

2. Shock Sensor: RM25/pcs
If you need this, just pay additional RM25 to the total, and remark to us: "Add Shock Sensor"
GPS tracker GPS106A / B

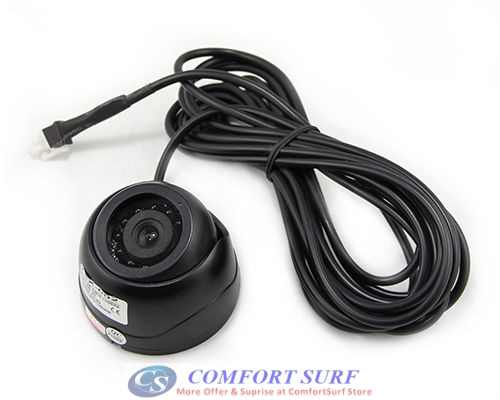

3. GPS Tracker Camera: RM100/pcs
If you need this, just pay additional RM100 to the total, and remark to us: "Add Camera"
GPS tracker GPS106A / B


Thank you for visit!
Reseller or Dropshipping reseller are welcomed.!!
