ITEM:
Model: CT007S_Wireless_Barcode_Scanner
Brand: ALANDA
2 in 1 ALANDA CT007S
Wireless + Wired USB Laser Barcode Scanner High Speed Scan
Build
in Battery + Memory
Highlight:
- 2
in 1 - Wireless + Wired USB
Barcode Scanner - Dual Use.
- 2.4ghz
wireless transmitter,distance up to 30 meters without obstacle
-
Support
Windows+Windows CE+Windows Mobile
-
1500mAh
Li-on rechargable battery,
low power consumption, more than 1 weeks stand-by time
- Build
in Memory - Can offline store
2600 code-128 barcode
-
Processor:
32 Digital,ARM+DSP Technology High Speed Scanner
-
Transmitting
power only 1mW,no radiation
-
High
sensitive, can read high density min 3mil
-
Provide
an accurate, easy & fast method of data entry and data storage
for computerized information systems
-
It
can be integrated into any host computer system by following ways:
keyboard / USB / Others
-
This
devices could be used
in library, file management, inventory tracking, POS,
etc
-
Simply
connect to your computer or cash register and you are ready to read bar
codes
-
Note:
DO NOT point the scanner's laser beam to eyes
Product
Features:
- Simple
installation.
- 2
in 1 - Wireless or wired
- Build
in battery and memory - store Upto 2600 code-128 barcode.
- Simple
programming from your keyboard or scan bar codes
- READ
/ NO-READ indicators (buzzer and LED)
- Superior
reading performance ultilizing advanced decoding algorithms
- Extended
ASCII support for code 128 bar codes
- Low
power consumption, over 1 weeks stand-by time.
- Wireless
& Wired USB,High sensitive, can read high density min 3mil
- Designed
for :catering,supermarket,medicalequipment,stock,logestic,library,cashier,office,etc
| PHYSICAL CHARACTERISTICS |
|
| Material |
ABS+TPU |
| Size |
Length
167mm*Width 70mm* Height 85.5mm |
| Color |
White,
Black |
| Power
supply |
Built-in
rechargeable 1500mA.H lithium battery |
| Weight |
150g(With
battery) |
| PERFORMANCE CHARACTRISTICS |
|
| Wireless
|
2.4Ghz
|
| Processor |
32
Digital,ARM+DSP Technology High Speed Scanner |
| EEPROM |
128K,
can store thousands of barcodes |
| Interfaces
Supported |
Multiple
Interface with: USB, RS232, PS2 Keyboard |
| Support
OS |
Microsoft
Windows XP/7.0/8.0/wince/mobile |
| Interfaces
Supported |
HID |
| Light
Source (Laser) |
Laser
LED 650+/-20nm |
| Sensor |
2500
pixels |
| Decode
Capability |
Codabar,
Code 11, Code 93, MSI, Code 128, UCC/EAN-128, Code 39, EAN-8, EAN-13,
UPC-A, ISBN, Industrial 25, Interleaved 25, Standard 25, 2/5 Matrix |
| Resolution |
5mil |
| Nominal
Working Distance |
6~30cm |
| Decode
Rate |
200
decodes per second |
| Scan
width |
30mm=Scanner
Window |
| Decode
mode |
Single-Line
Aiming |
| Scan
mode |
Auto
off mode / Manual mode |
| Print
Contrast Minimum |
30% |
| Scan
angles |
Roll 30° Pitch 75° Yaw65° |
| Cylinder
Horizontal Scan |
Diameter
35mm |
| Indication |
Beeper,
LED |
| Radio
Range |
10m
Visual range |
| POWER |
|
| Voltage |
DC
5V |
| standby
Current |
35mA |
| Operating
current |
60mA |
| USER ENVIRONMENT |
|
| Operating
Temp. |
32 to 122°F |
| Storage
Temp. |
32
to 122°F |
| Operating
Humidity |
20-85%
( non-condensing ) |
| Storage
Humidity |
20-85%
( non-condensing ) |
| Drop
Specifications |
Free
fall of 1.5m air drop |
| Accessories |
USB
Receiver, Data lines |

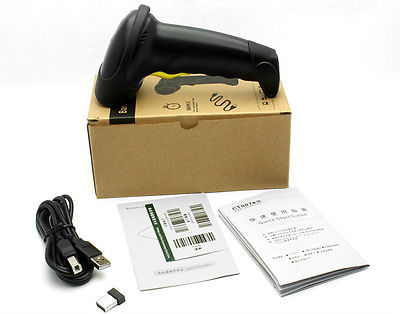

Package
Include:
- 1
x CT007s Laser Bar Code Scanner
- 1
x Wireless Dongle
- 1
x USB LAN Cable
- 1
x Manual (English + Chinese)
Extra
Images:
|
|
