ITEM:
Model: Barcode_Scanner
Brand: SOONYE

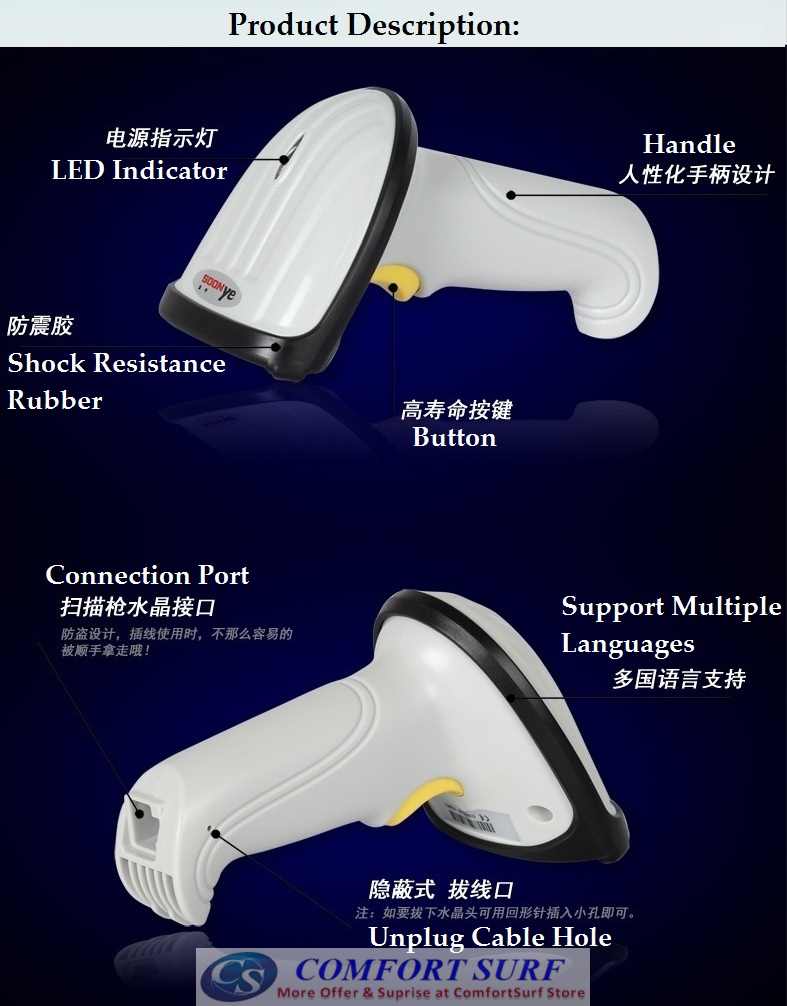

SOONYE USB Wired Laser
Barcode Scanner High Speed Scan
Highlight:
- This
laser light barcode scanner devices provide
an accurate, easy & fast method of data entry and data storage
for computerized information systems
- It
can be integrated into any host computer system by
following ways: keyboard / USB / Others
- This
devices could be used
in library,
file management, inventory tracking, POS,
etc
- Simply
connect to your computer or cash register and you are ready to read bar
codes
- Automatic
continuous scan function!
- Note:
DO NOT point the scanner's laser beam to eyes
Product
Features:
- Simple
installation
- Simple
programming from your keyboard or scan bar codes
- READ
/ NO-READ indicators (buzzer and LED)
- Superior
reading performance ultilizing advanced decoding algorithms
- Extended
ASCII support for code 128 bar codes
- Low
power consumption

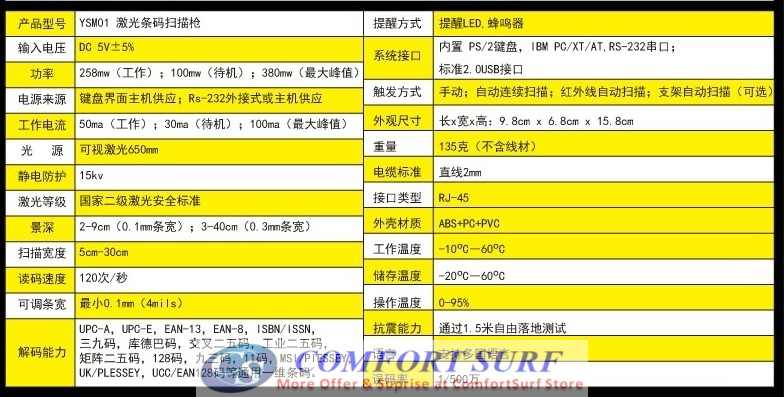

Specifications:
| Model |
YSM01
Laser Barcode Scanner |
| Brand |
SOONYE |
| Input
Voltage |
DC
5V ±
5% |
| Power |
258mw
(Working); 100mw (Standby); 380mw (Peak Value) |
| Current |
50ma (Working);
30ma (Standby); 100ma (Peak Value) |
| Light Source |
Visible Laser 650nm |
| Static Electricity
Protection |
15kv |
| Laser Level |
Grade 2 National
Laser Safety Standard |
| Depth of Scan Field |
2-9cm (0.1mm
wide); 3-40cm (0.3mm wide) |
| Scan Width |
5cm - 30cm |
| Scan Speed |
120 scans / sec |
| Readable Width |
Minimum 0.1mm
(4mils) |
| Decode Capabilities |
UPC-A, UPC-E,
EAN-13, EAN-8, ISBN/ISSN, Code 39, Codabar,
Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 128, Code
93, Code 11, MSI/PIESSEY, UK/PLESSEY, UCC/EAN128, China Postal Code |
| Indicator |
LED Indicator,
Buzzer |

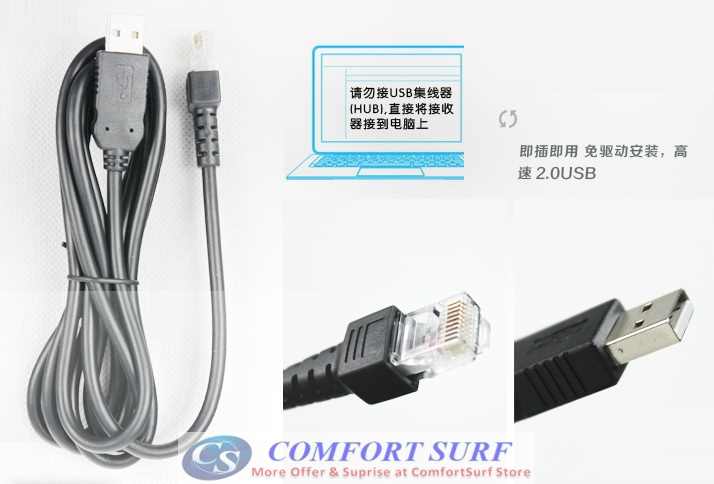

| Connection Port |
IBM PS/2 Keyboard,
IBM PC/XT/AT, RS-232, Standard 2.0 USB Port |
| Scanner Size |
9.80cm
(Length) x 6.80cm (Width) x 15.80cm (Height) |
| Weight |
135g (not include
usb cable) |

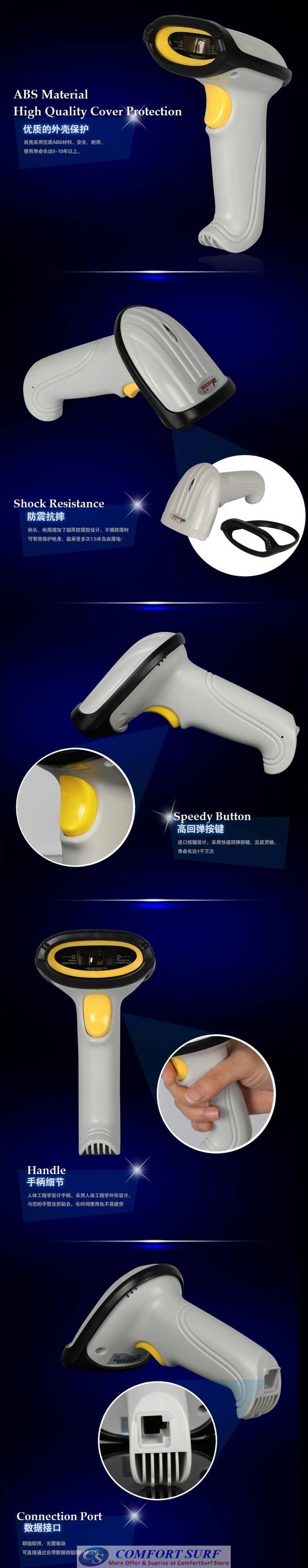

| Material |
ABS
+ PC + PVC |
| Working
Temperature |
-10oC
to 60oC |
| Storing
Temperature |
-20oC
to 60oC |
| Operating Humidity |
0 - 95% |

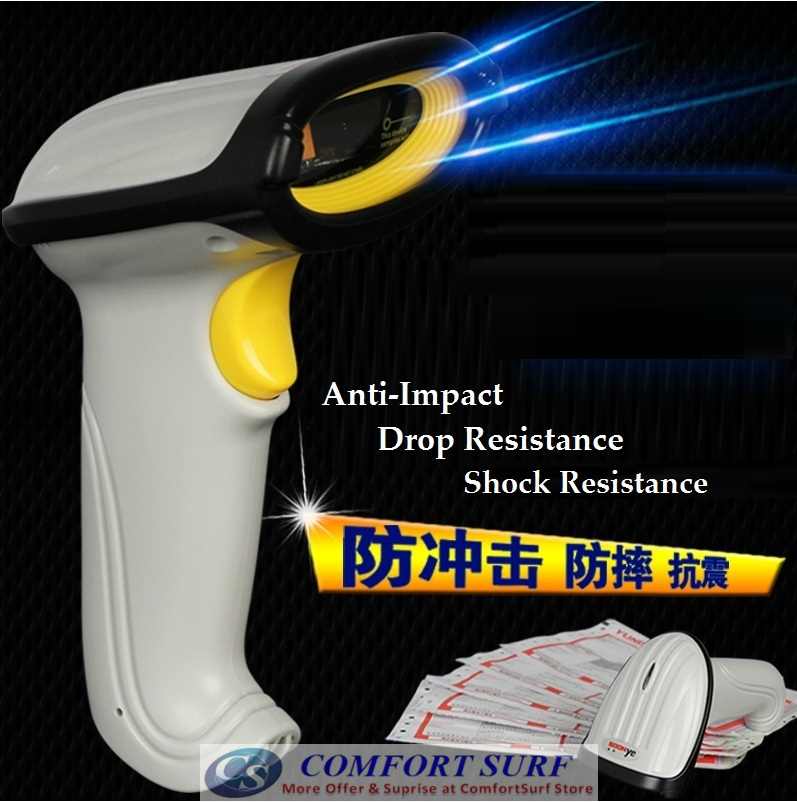

| Shock Resistance |
Pass the 1.5m free
fall test |
| Language |
Support
Multiple Languages |
Package
Include:
Extra
Images:
