ITEM:
Model: Dual_Mimo_LTE_Antenna_18dBi
4G

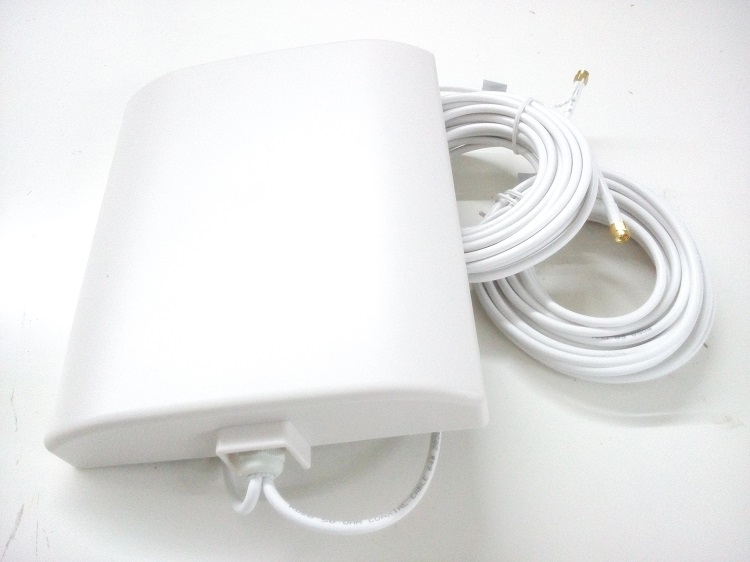

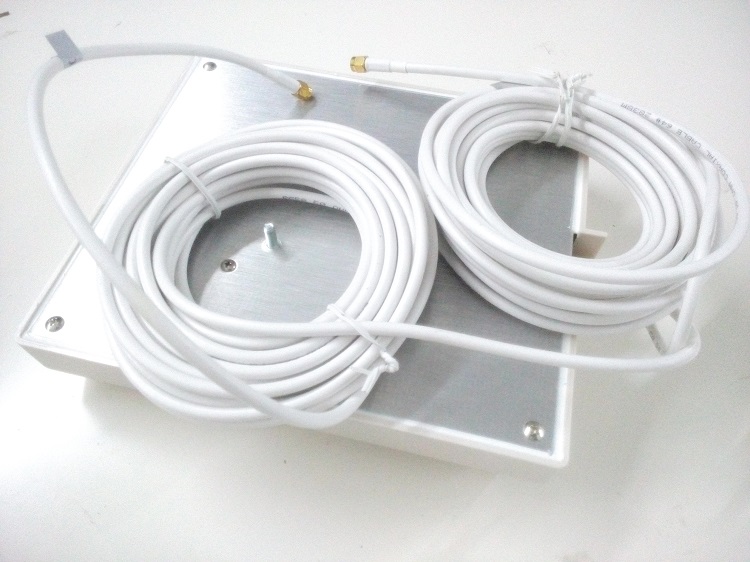

3G LTE dual-polarized flat plate Panel antenna directional antenna
1710-2690MHz 18dbi Mimo system

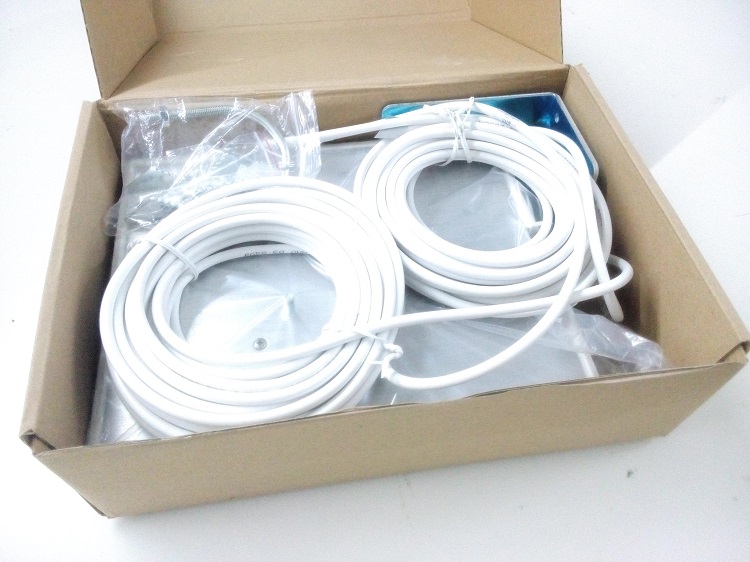

Comes
together 2 X 8 meters Coaxial Cable with SMA Male Connector (Default)
4G
LTE Antenna Signal Booster
For
All LTE 4G 3G Usb Modem / 3G router
Specification:
|
频
率范围Frequency
range（MHz）
|
1710～270
|
|
极
化方式Polarization
|
垂
直和水平Vertical
and Horizontal
|
|
增
益Gain（dBi）
|
2×9
|
|
半
功率波瓣宽度half-power
beam width（°）
|
H:70
V:55
|
|
前
后比Front-to-back
ratio（dB）
|
≥25
|
|
输
入阻抗Input
Impedance（Ω）
|
50
|
|
电
压驻波比VSWR
|
≤1.5
|
|
隔
离度Isolation
between ports
|
≥28dB
|
|
电
下倾角Remote
tilt（°）
|
0
|
|
交
叉极化鉴别率Cross-polar
ratio
|
≥15dB@0º
≥10dB@+/-60º
|
|
上
第一副瓣抑制Sidelobe
suppression for first sidelobe above horizon
|
15
dB
|
|
最
大功率Maximum
input power（W）
|
50
|
|
雷
电保护Lightning
protection
|
直
流接地DC
Ground
|
|
机
械参
数Mechanical
Specifications
|
|
接
头类型Input
connector type
|
2-SMA公
头
2-SMAMale
|
|
天
线尺寸Dimensions-mm
(Height/Width/Depth)
|
225*195*47
|
|
天
线重量Antenna
weight（kg）
|
0.45
|
|
天
线罩材料Radome
material
|
ABS
|
|
天
线罩颜色Radome
color
|
白
色White
|
|
工
作温度Operating
temperature（°c）
|
-40～60
|
|
极
限风速Rated
Wind Velocity（m/s）
|
60
|
|

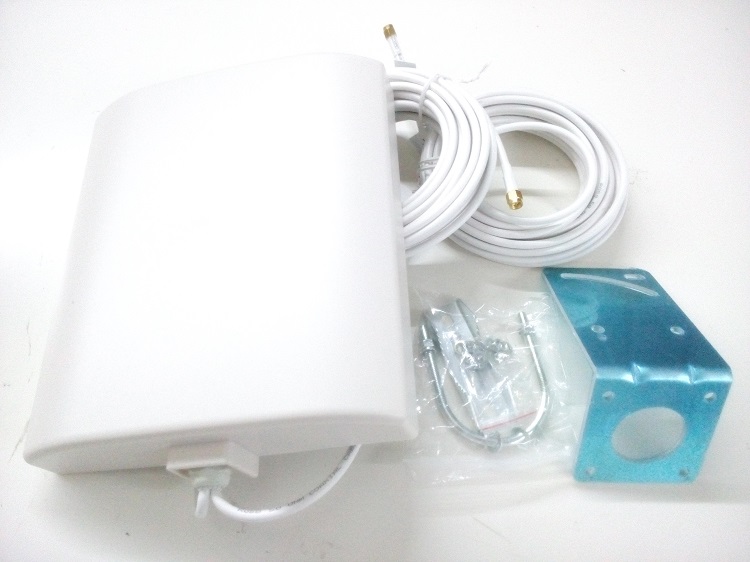

抱
杆直径Mounting
hardware（mm）
|
￠35～￠50
|
Note:
Panel Antenna is an outdoor antenna, It have to install at Outside
(free area), best performance is without anything block in between
antenna with source tower. It is a directional antenna, so please
adjust facing the signal source.

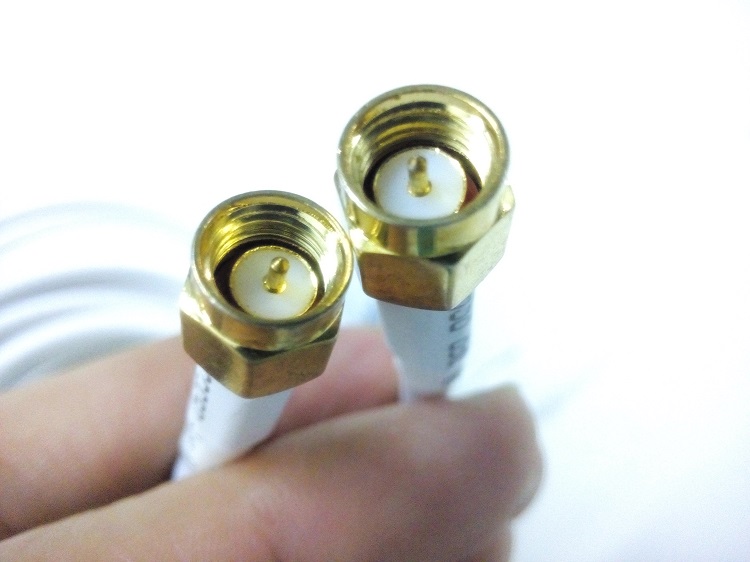

Connector
on Antenna is SMA Male as per above picture.
Optional:

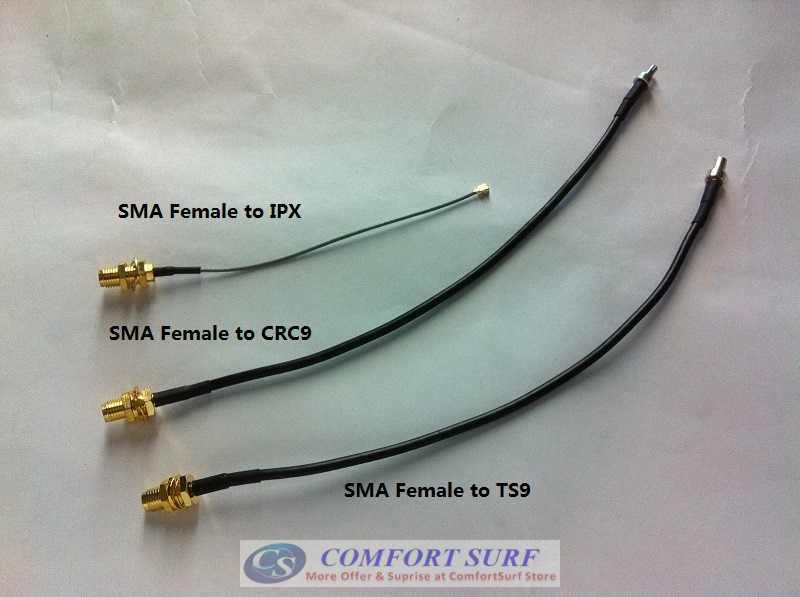

you can choose Patch Lead Adapter Cable to suit your modem:
SMA Female to TS9
Patch Lead Adapter Cable:
TS9
Connector
Supported Models:
-
Huawei
E398 K5005 E392 E589 E587 E5776 K5005 E398 760S
-
Sierra
wireless 753S 754S 760S 312U 320U 2G 3G 4G LTE Antenna TS9
-
ZTE
MF60 MF61 MF62 MF633+ MF645 MF633BP MF30(3G) MF60(3G) MF61(3G0 MF62(3G)
-
Telstra
760S (4G WiFi Modem)
-
Telstra
320U(4G USB Modem)
SMA Female to
CRC9 Patch Lead Adapter Cable:
CRC9
Connector
Supported Models:
-
Huawei
- E122, E156, E156G, E160, E160E, E160G, E161, E169, E176, E176G,
E182e, E196G
-
Huawei
- E353, E355, E367,E372, E583C
-
Huawei
- E600, E612, E613, E618, E620, E630, E660A, E881E
-
Huawei
- E1612, E1762, E1820, E1823
-
Huawei
- E3131
-
Huawei
- EC321, EC881E,
-
Huawei
- K3520, K4505,
K4510, K4511, K4605
-
Huawei
- UMG181, UMG1691, UMG 1831
-
Others
CRC9 compatible model
-
**Celcom
PortaWIFI same with Huawei E355

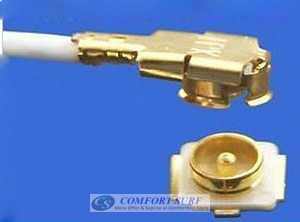

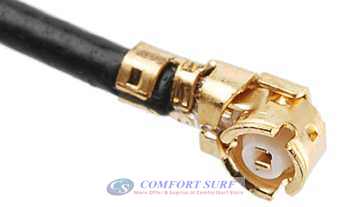

SMA Female to IPX
Patch Lead Adapter Cable:
