ITEM:
Model:
GPS_Tracker_303D
2014
Professional Vehicle Real Time GPS Tracker for Vehicle Car / Motorcycle
/ Car Rental / Van / Bus / Truck / Any Moving Object
Listen in (Spy Listening) / Live Monitoring / Fleet Management
Power Saving Mode / LBS + GPS Tracking
With convenient SMS
ability, full-range of alarm functions including gas
to engine cut off,
and the latest in GPS tracking technology, the GPS Car Tracker is the
ultimate safety device for your car, van, truck, or even the entire
vehicle fleet.
This is latest type in
market with best tracking function for Vehicle use..
Use it to protect vehicle Car, Motorcycle, Truck, and any moving
object..
It also provide have live online monitoring function (by subscribe to
live server tracking).
Support
/ Function:
- Easy install GPS
tracker for vehicle / Motorcyle / Private Car / Any moving Objet.
- Sleep by Time / Shock
Sensor, Deep Sleep, Awake at specific Time
- Multi Power Saving Mode
- Location Base Service
(LBS) + GPS double Real time tracking solution
- Less GPS traffic mode
(Money save model)
- Voice Monitor / Spy
listening
- Fast Call to 3 Preset
Phone Numbers
- SOS button, Cycle call
and reports its location to authorized phone
- Alert: GPS blind
Sport, Movement, Geo-Fence, Over Speed, ACC, Shock, EXT Power Failure
and Low Battery Alert
- Build in Memory for
16000 Positions
- Support Micro SD to
save Positions
- Stop and Resume Engine
(Model GPS303D)
- ARM and DISARM by
SMS (Model GPS303D)
- ARM and DISARM by
SMS (Model GPS303D)
- Build in 500mAH
Polymer battery
- SMS Tracking on
Smartphone with google maps link
- Support Android / IOS
- Street address by SMS
- Free PC based tracking
software
- Web Online Server
Tracking (Optional) and Mobile Apps.
- Configure parameters
by USB cable (Free,include in the package)
- Support to work on
www.gpstrackerxy.com, demo account is, demo, password,8888

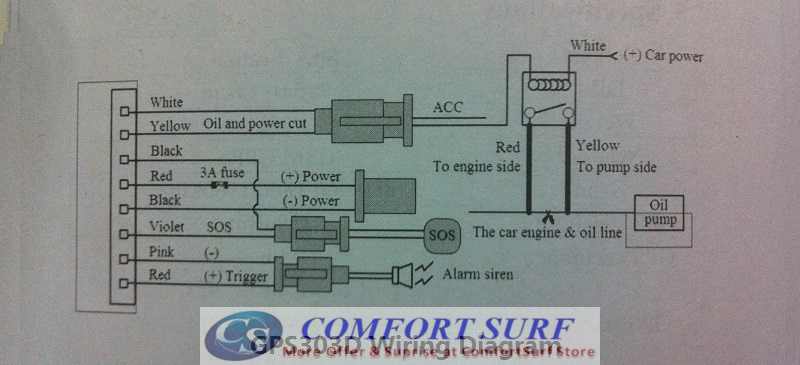

Wiring Diagram (Model GPS 303D)
Find
the 8 PIN harness and insert it into the corresponding holes of the
products, and connect the wires with the original car circuit showing
below:
Specifications
|
Content
|
Specifications
|
|
Dim.
|
8.9×5.0×1.6cm
|
|
Weight
|
65g
|
|
Network
|
GSM/GPRS
|
|
Band
|
850/900/1800/1900Mhz
|
|
GPS sensitivity
|
-159dBm
|
|
GPS accuracy
|
5m
|
|
Time
To First Fix
|
Cold
status 45s
Warm status 35s
Hot status 1s
|
|
Car
Power Supply
|
12 - 24V
input
|
|
Charging
Voltage
|
Chargeable
changeable 3.7V 1000mAh Polymer battery
|
|
Standby
|
-40°C
to +85°C
|
|
Storage
Temp.
|
-20°C
to +65°C
|
|
Operation
Temp.
|
5%--95%
non-condensing
|
Purpose/Possible
Uses:
- Keep in your Car as an
Anti-Theft system (Able to shutdown your car engine remotely - Model
GPS303D)
- Keep track of your Child,
Teen, Elderly, or Handicaped.
- Voice Spy: Track and
listen people converstation
- Catch your if your spouse
is cheating.
- Track Staff on the road.
- Track a Criminal
Offenders.
- Track valued product
shippments.
- Track lost
hikers,divers,skiers,sailers.
- Vehicle rental / Fleet
Management - Great for private use, company car or rental fleet
management
How it Works:
Simply insert a GSM
sim card into the GPS unit. Whenever you call the unit it will respond
with the coordinates of its location thru a SMS message. You can then
use these coordinates on any mapping software (for example google
earth) which will show where exactly the unit is located. Or directly
click on the provided link on SMS, to get to google map for the
location.
TRACKING VIA SMS
Call the device, the device will reply
below sms, with a GPS coordinates and a link to google map.
Live
Tracking via Web Server (Server Subcription is need - Optional Service)
To
live monitor how is the GPS tracker moving in real time.
You can login to server and live monitor your current vehicle direction
at any pc, at anywhere.
You can also check back the history of the vehicle track.
We can provide this option service to our customer.
Please check at www.gpstrackerxy.com for server demo:
Login: demo, Password: 8888
If you need this server service, Please contact us for details.

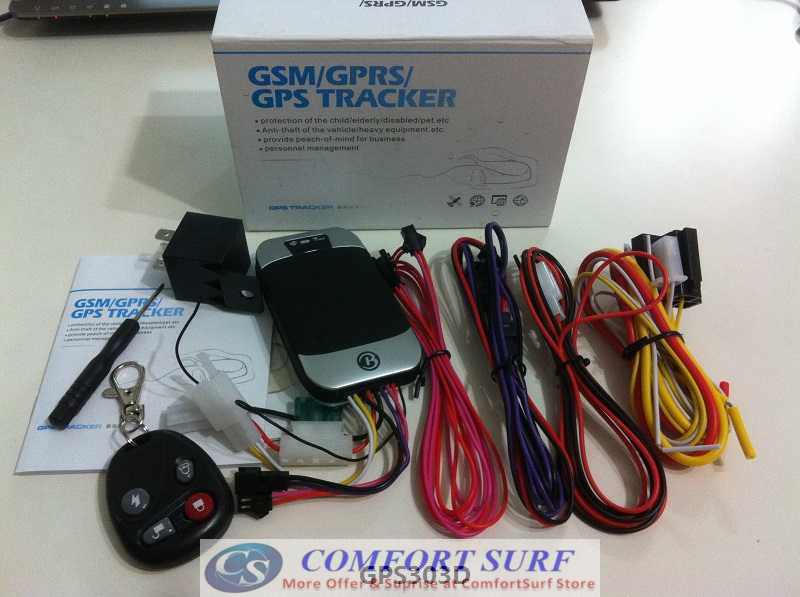

Package
Content:
Thanks
for visit.
Reseller
or Dropshipping reseller are welcomed..!!
|
