Huawei E5180 4G LTE Cube E5180As-22 Modem Router 150 Mbit/s LAN Port

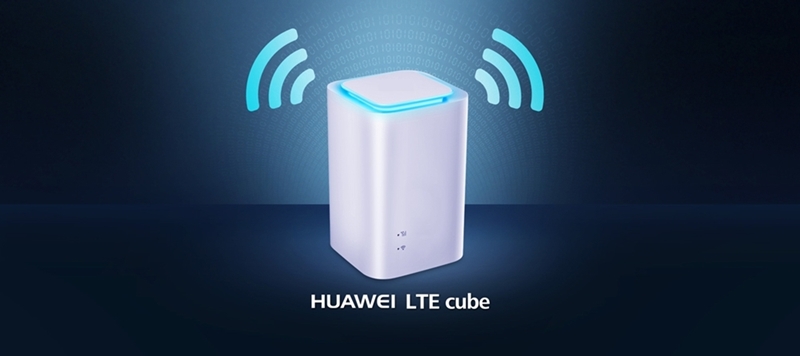

Lights up your world beautifully

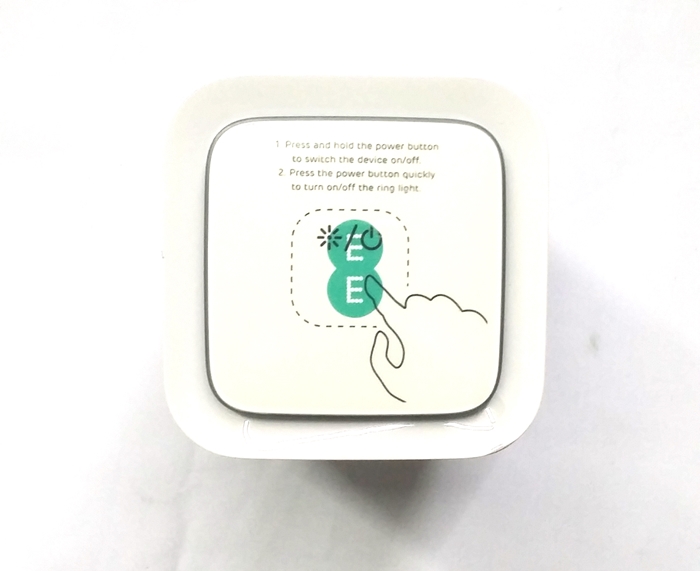

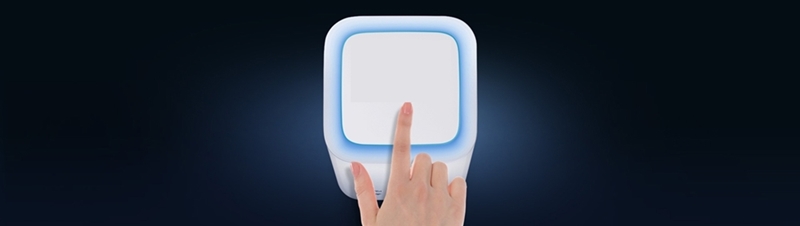

The elegant and intuitive design of the LTE cube lets you power on with just one touch to light up your world with a cool blue aura.

No speed bumps

Thanks to the latest, most advanced technology like LTE Cat4, you can look forward to an incredibly fast wireless experience with download rates of up to 150 Mbps.

Your personal manager

Download the companion Hilink app to manage and monitor your data usage, view important statuses, and even control the users connected to your LTE cube.

Long-distance relationships

The LTE cube's Wi-Fi signal strength is incredibly strong and covers a distance of up to 250 meters around it so you have a fast, stable online experience everywhere you are.





Features and performance

• Sometimes the broadband offered to our homes and offices just doesn’t cut it, not in this super speedy digital economy where everything has to be done in a lightning fast way.

• For instance, while many of us rely on ADSL2+ for our broadband, the speeds aren’t quite as high as we want. Recently, America’s Federal Communications Commission reclassified the word “broadband” to mean a minimum of 25Mbps down and 3Mbps up, and while we in Australia don’t rely on what the FCC says, very few Australian households and office blocks will have broadband by that definition.
• Locally, the majority of us with broadband are likely relying on ADSL2+, which can pull speeds as high as 24Mbps down and 1Mbps up, but will likely hit closer to the 8 to 11Mbps mark, sometimes lower, with distance from the phone exchange being one reason why this speed drops from what you can technically achieve.
• Another option exists, of course, with cable providing speeds of 30Mbps and up to 100Mbps, though once again, this is dependent on a variety of factors, such as how many people in your neighbourhood are using the technology at the time, not just for downloading, but also for watching TV. If there’s no one, you’ll do well and grab super-fast speeds, but the moment the TVs go on or someone else is using cable for internet, that bandwidth gets torn asunder and your speed goes out the window.
• All of this is before the National Broadband Network, of course, though with the current government status on that not likely to see 25Mbps minimum speeds for most of the nation until probably another three to five years (by which point we’ll need much faster to even be called broadband again), for some people, the only hope this year might be to turn to mobile broadband.

Huawei E5180As-22 Technical Specifications:

• 4G BAND: LTE FDD 2600/2100/1800/900/800 MHz TDD 2600 Mhz
• 3G BAND: DC-HSPA+/HSPA+/HSPA/UMTS: 2100/900 MHz
• 2G EDGE/GPRS/GSM: 1900/1800/900/850 MHz
• Support up to 30 Wireless users

• LTE DL Speed up to 150 Mbit/s @ 20M bandwidth
• LTE UL Speed up to 50 Mbit/s
• 3G SPEED:
• HSPA+DL (DOWNLOAD) up to 42.2Mbps
• HSPA+UL up (UPLOAD) to 5.76Mbps

FEATURE:

*1 : External ports : One power port ,One RJ45 port for LAN connections,One micro subscriber identity module (SIM) card port
PORT: 1 X LAN + 1 X Sim SLot
Dimensions (H x W x D) : 70 mm ×70 mm ×110 mm , Weight:About 250 g

*2: Software

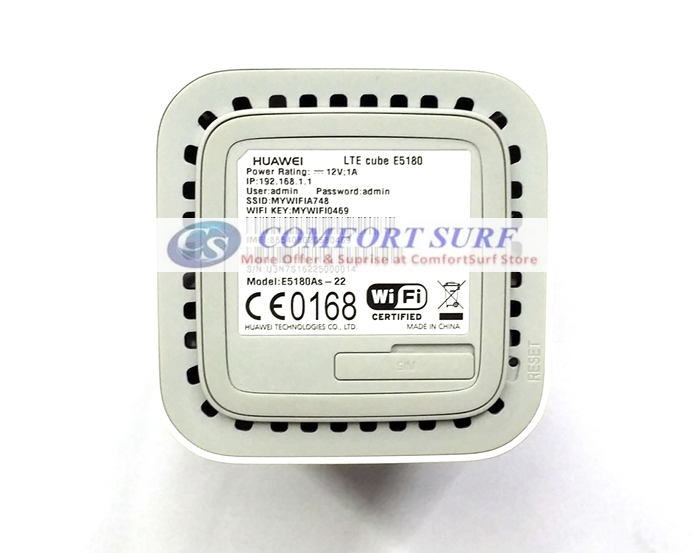

Supports the default route: 0.0.0.0. Supports the default gateway address: 192.168.1.1.

*3. Built in antenna
Frequency range 790–960 MHz, 1710–2690 MHz, Input impedance 50 Ω ,Standing wave ratio (SWR) < 3 ,

Efficiency > 45% Gain 0–3 dBi ,Polarization type =Linear polarization

*4-HUAWEI Mobile WiFi App
View service provider's name, the roaming status and signal strength.
View the data traffic usage and SMS
Manage the connected devices
Change LTE cube's SSID and password.

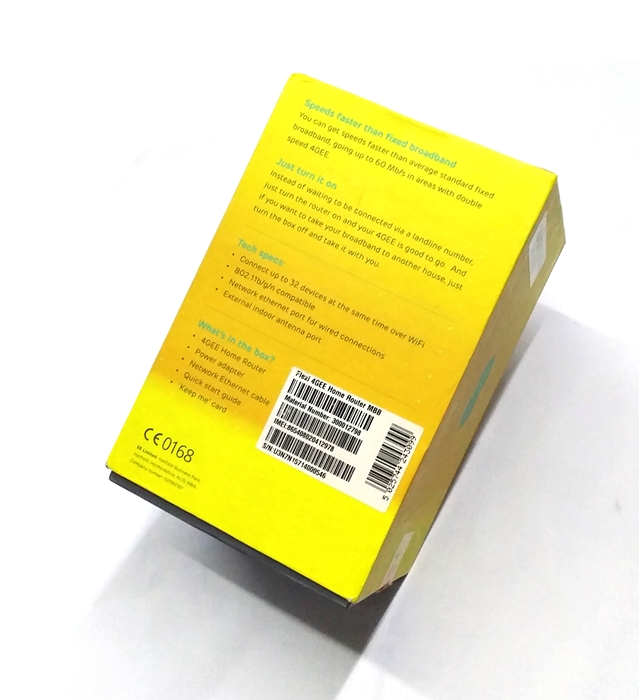

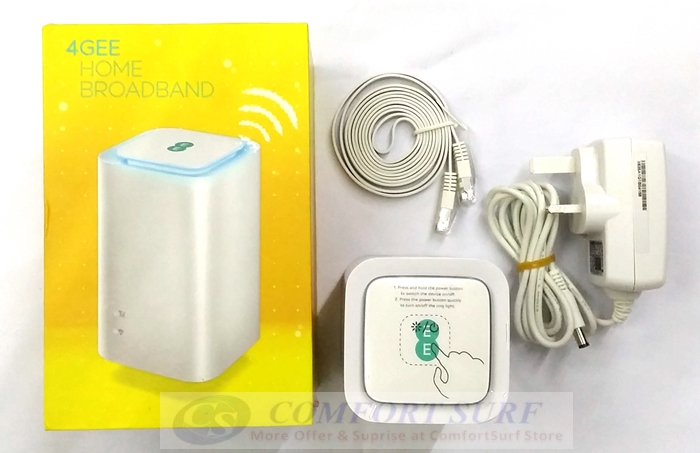

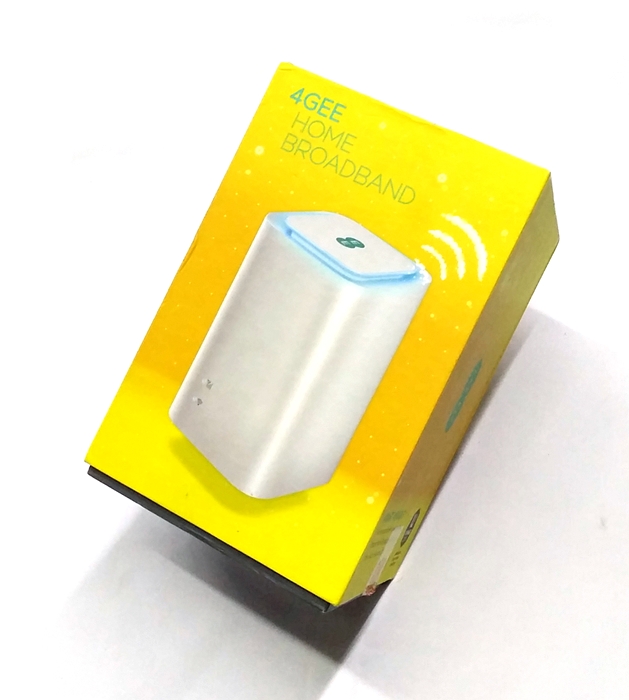

Package Content:

ITEM REAL IMAGE

Model : Huawei_E5180_Modem @RM349
