18dBi RP SMA High Gain Antenna Booster for Wifi Adapter/Router

Market Price:

~~MYR 98.00~~

Buy more to get lower price

1 - 1 units

MYR 59.00

2 - 4 units

MYR 55.80

5 - 10 units

MYR 54.40

11 - 20 units

MYR 53.20

Shipping Cost

Free Shipping

Share with friend.

Buy Now:

MYR 59.00

Retail Price:

MYR 59.00 at our shops

Option:

Qty:

How to Buy?

502 Sold since Nov-2013

ITEM:
Model: Wifi_Antenna_18dbi

18dbi Yagi Antenna 2.4GHz Wireless WiFi RP SMA Antenna With 5 Meters Cable

Yagi / Directional Antenna Signal Booster

For All USB wireless Adapter/Router to increase Signal

GSKY / WIFLY CITY / KINAMAX / BLUEWAY / COMFAST / AlfA

And All others Wireless Adapter / Wireless Router

D-link DWL520, linksys WMP11, WET11, netgear MA311, or D-link APs

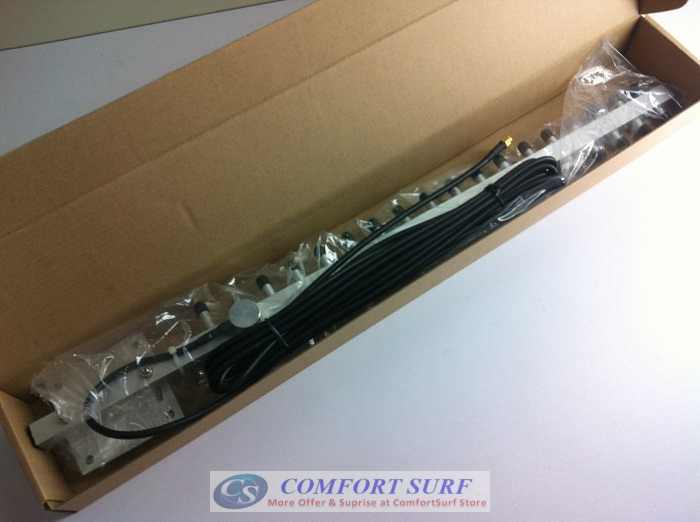

pls note below picture cable is 1 meter, but currently we are selling 5 meters.

18dbi RP SMA 2.4GHz Wireless WiFi Yagi / Omni Antenna Booster

18dbi SMA 2.4G Wireless WiFi Yagi Antenna Booster For Router Network
- Brand new 2.4G 18dbi Yagi Antenna
- Standard RP-SMA female connector, compatible with most wireless devices like AP, wireless router, PCI wireless network card, etc.
- Max gain up to 18dbi, provides more signals
- Rubber joint, easy to wind the antenna
- Strong suction base, never breaks your desk by falling down
-Covers up to 2500 metres (environment dependent)

18dbi RP SMA 2.4GHz Wireless WiFi Yagi / Omni Antenna Booster

Antenna Type: Yagi Antenna
Frequency Range-MHz 2400~2500MHz
VSWR : 1.5
Input Impedance-© 50
Gain: -18dBi
Polarization Vertical
F/B ratio-dB
Horizontal Beamwidth ° 36
Vertical Beamwidth ° 23
Maximum Power -W 50
Bandwidth-MHz 100
Connector RP-SMA Plug
Mechanical Specifications
Dimensions-mm
Weight: ~0.120KG
Length: 58cm
Mounting Mast Diameter-mm ? 50-100
Cable: 5 meters

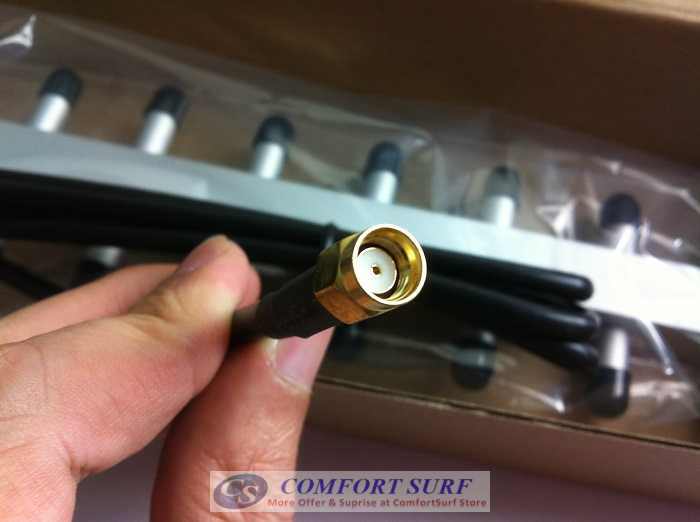

Pin: RP-SMA Inner Screw(fit for WLAN cards. WLAN routers)
Antenna length: 60cm
Applicable to: All wireless device in frenquency range of 2.4GHZ
Wireless routers. Adapters. Control monitors. Small wireless camera. Wireless emitter. Receiver. Signal booster.

Note: Yagi Antenna is an outdoor antenna, It have to install at Outside (free area), best performance is without anything block in between antenna with wifi source.

Default Connector is SMA Female as per above picture.
You can choose for others connector as well with additional RM10:

TS9 Connector:
