NEW Sapido GR-1102 N+ 3.5G /
HSPA Wireless LAN Router
(HSDPA / 3.5G / UMTS /
3G / EDGE /
GPRS)
(Brand New,
Support many branded USB Stick Modem)
USB/DC/AC Dual Power / WLAN, 2 USB Port, 2 LAN Port
All in One
3.5G /
DSL + WIFI, IP Camera, Printer Sharing, Build in FTP,
USB HDD, Flash, Card Reader Sharing
========================================
 |
3.5G Mobile Hotspot‧Server AP |
| |
This is exactly a mobile
router got to be: mini, multi-power supply and internet on the road.
Create instant WiFi Hotspot at remote locations, such as construction
sites, special occasions, conventional centers, vehicles, or where
DSL/cable is not available. With multiple power supply, from home
sockets, car charger, laptop or battery pack, you can easily access
internet on the go for surfing, skype, music, games, etc.
Use it as wireless AP at home to extend wireless coverage. With the
server features built-in, it works as a wireless USB server for several
devices at the same time. No settings required, just plug and play for
printer sharing, remote printing, real time and online monitor,
scheduled recording and file sharing with FTP server and Samba my
network places. |
|
| |
| |
Other Features |
| |
 Unique WiFi AP mode, WDS no
configuration.
WPS one touch encryption and
connection.
Multi-Network connections: Router
、WiFi ISP、 AP、 WiFi AP
Multi-AP - Network groups setup for
flexible management.
Complies with wireless 11n standard,
which upgrades data transfer rate to 300Mbps and with coverage 4
times larger than 11g.
Secure Internet - Supports various
Internet filters and advanced encryption types.
Unique domain name - Easy to find
your server router by typing the unique domain name.
Virtual Server
Virtual DMZ
|
|
| |

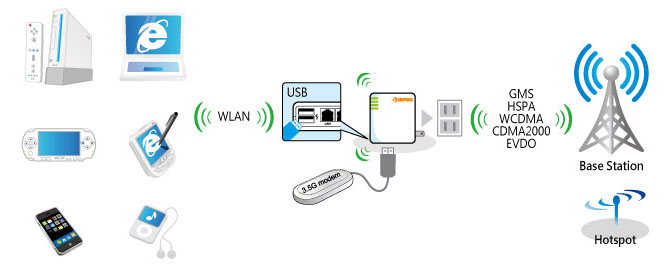

3.5G
Mobile Hotspot |
| |
As long as the mobile phone
is available, you can share Internet with others. Connect a 3.5G modem
to the 3.5G Mini Server, you can build a wireless Internet access point
easily.
|
|
|
| |
|
| |

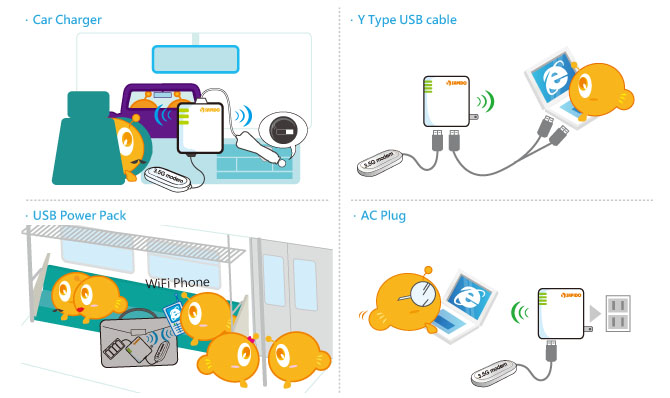

DC/AC
Dual Power |
| |
Your router is no longer limited by electrical outlet because this 3.5G
Mini Server is designed to meet all kinds of power supply. It supports
both AC and DC power, moreover, there is a mini USB port on it, it
works perfectly with AC power, power pack, or car charger. Hence, you
can easily use it indoor, on the road, or in vehicles.
|
 |
| |
|
| |

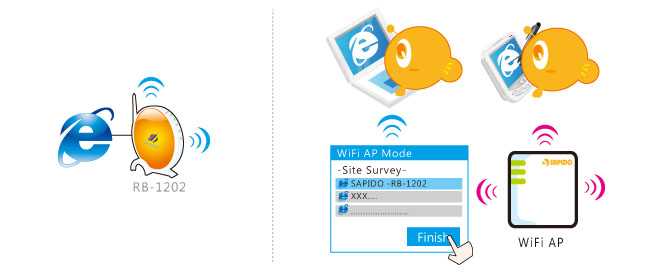

Unique WiFi AP |
| |
WDS no configuration, just search available network and
click to link. Super easy for Internet Extension. |
 |
|
|
| |

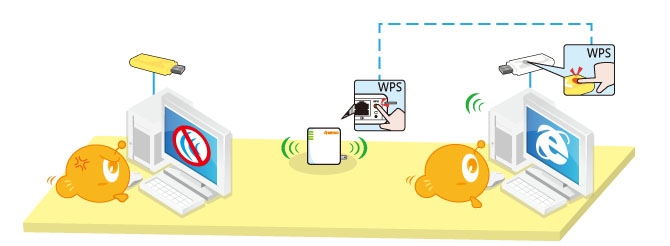

One
Touch WPS Encryption and Connection |
| |
Complete the wireless encryption and connection by
pressing the WPS button on both 3.5G Mini Server and wireless adapter. |
|
|
| |
|
| |
Wireless
USB Server |
| |
The USB ports on 3.5G Mini Server stand for various USB
devices, such as printer, webcam, and HDD. |
| |
|
|
|

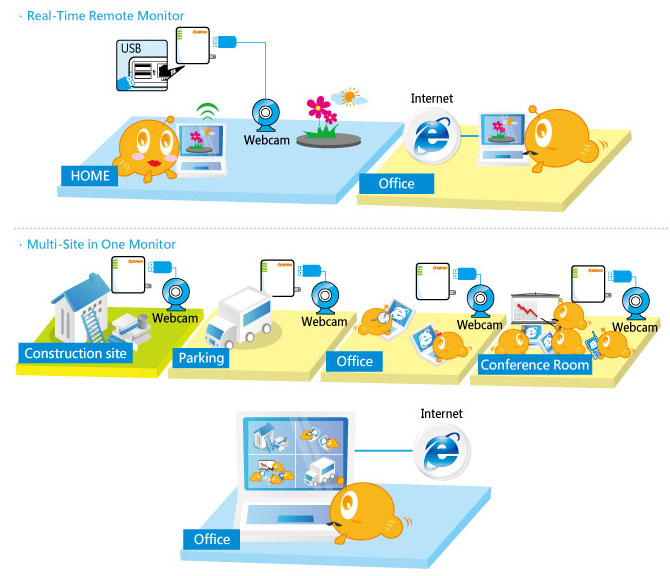

Home Surveillance
-
Real-Time and remote monitor |
| |
Apply USB webcam to 3.5G Mini Server , you can access to live image
from computer, PDA or mobile phone with browser anywhere anytime. No time to
watch live image is not a problem because it can record images to HDD.
Besides, it supports multi-view feature, multiple sites could be
watched in one monitor at the same time. |
 |
| |
|
|
|

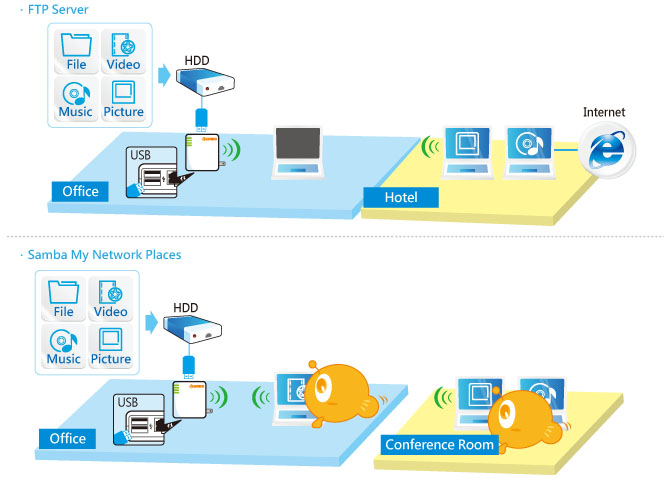

USB Storage - FTP
and Samba Server |
| |
FTP Server inside, no computer and software required. |
| |
Samba works similar to "My Network Place", and PCs in same LAN network
can share files freely. |
 |
| |
|
|
|

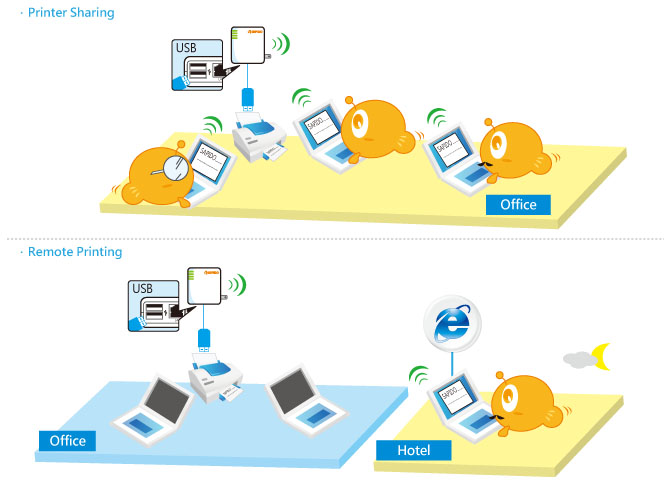

Printer Server -
Printer Sharing
and remote printing |
| |
|
Share the
printer without a dedicated computer. Just apply a USB printer to the
3.5G Mini Server and install printer driver on PC, everyone can
print document through it. Even more, when you are away, you can still
remote print document by linking to the 3.5G Mini Server . |
|
| |
 |
SPECIFICATIONS
 |
Hardware |
 |
WAN Port : |
| |
10/100 Mbps RJ45, with
auto MDI/MDIX x 1 |
|
|
LAN Port : |
| |
10/100 Mbps RJ45, with
auto MDI/MDIX x1 |
|
|
USB 2.0 Port: |
| |
Connector-Standard
A type x 2 |
| |
Support-USB
3.5G/3.75G (UMTS/HSPA, CDMA/CDMA2000, TD-SCDMA )
modem,
|
| |
USB Webcam, USB
Printer, USB Flash/HDD, |
| |
Cardreader |
|
|
Standard: |
| |
IEEE 802.11b / 802.11g / 802.11n
(Draft 2.0)
|
|
|
Data Rate: |
| |
802.11n (up to
300Mbps) |
| |
802.11g (up to
54Mbps) |
| |
802.11b (up to
11Mbps) |
|
|
LED Indicator: |
| |
POWER, STATUS / WPS,
WIRELESS, WAN, LAN |
|
|
Button: |
| |
WPS Button, Reset/Reboot
Button |
|
|
Button: WPS Button,
Reset/Reboot Button |
|
|
Antenna : |
| |
Built-in x2 |
| |
|
| |
USB Application |
|
|
USB Storage: |
|
|
FTP Server |
|
|
Samba Server |
|
|
Supported file system
for USB Storage: |
| |
FAT16, FAT32, EXT3, NTFS |
|
|
Webcam Server (UVC
Driver): |
| |
Webcam view via browser
by internet real-time |
| |
Picture recording to FTP
server or USB HDD |
|
|
Printer Server: (LPR
Protocol) |
| |
Printer Sharing |
| |
Remote Printing |
| |
|
| |
Network Feature |
|
|
WAN Type: |
| |
3.5G/3.75G , Static IP,
Dynamic IP, PPTP, PPPoE |
|
|
Network Protocols: |
| |
SNAP/LLC,TCP/IP, PPTP,
PPPoE , UDP, ICMP, IGMP |
|
|
Routing: |
| |
DHCP server, Client, DNS
server |
|
|
NAT: |
| |
Port Forwarding, DMZ |
| |
|
|
|
| |
|
| |
Wireless Application |
|
|
Wireless Security: |
| |
WEP 64 or 128
bit/WPA/WPA2/WPA2 Mixed |
|
|
WPS(Wi-Fi Protected
setup):PCB/PIN |
|
|
WDS |
|
|
Multiple APs |
| |
|
| |
Firewall |
|
|
URL / Port / IP / MAC
Filtering, Port forwarding, DMZ |
| |
|
| |
System Management |
|
|
SadoGO Quick Setup Wizard |
|
|
Web-base Interface |
|
|
Firmware upgrade via web |
|
|
Multiple APs |
|
|
Profile Save |
|
|
Event Log |
|
|
Language Setup: |
| |
12
Languages (English, Traditional Chinese, Simplified Chinese, Dutch,
French, Italian, Spanish, Portuguese, Russian, Japanese, Korean, Arabic) |
| |
|
| |
Environment |
|
|
Dimension : 91(L) x
80(W) x 29(H) mm |
|
|
Weight: 190g (device
only) |
|
|
Power Adapter: |
| |
AC 100V ~ 240V / DC
5~12V 1.5A/Mini USB DC 5V 1.5A |
|
|
Certificaitons:
CE/FCC/RoHS/NCC |
|
|
Support OS: Windows,
MAC, Linux |
|
|
SadoGO Support OS:
Windows 2000, XP or Vista |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
More
Details and Supported Modem List
Please Refer: http://www.sapido.com.tw/EN/productgr1102o.htm
Package Included:
1 X Sapido GR-1102 HSDPA WLAN Router
1 X User Manual
1 X Sapido Application Installation CD
1X Original Box
1 X Company Receipt of purchase.
1
Year
WARRANTY |
