NEW Sapido RB-1132 3.5G / HSPA
N+ Wireless (300Mbps) Wifi LAN Router
(HSDPA / 3.5G / UMTS / 3G / EDGE / GPRS)
(Brand New, Support many branded USB Stick
Modem)
USB/DC/AC Dual Power /
WLAN, USB Port, 2 LAN Port
** SUPPORT WIMAX USB
DONGLE **
ALL BROADBAND MOBILE HOTSPOT
Overview
 |
Mobile Hotspot‧All Broadbands |
| - |
Multi-power Supply, Mini and Compact, Transformer built-in, All
Broadbands can Work - SAPIDO is to present you a Mobile Hotspot powerful
than ever. |
| - |
Whatever broadband service you use - xDSL/Cable, WiFi Hotspot,
3G/4G, or even WiMAX, you can share internet connections effortlessly
via Sapido Mobile Hotspot. No need cable or complicated WDS
configuration to extend wireless coverage, with only one click or press
on WPS button, Mobile Hotspot can work as wireless bridge to eliminate
dead spot in your house. |
| - |
With AC/DC dual power supply, wherever DSL/Cable or electricity is
not available, you can still create instant hotspot at remote locations,
such as construction sites, special occasions, conventional centers,
vehicles, etc.to access internet on the go for surfing, skype, music,
games, etc. |
| - |
SAPIDO Mobile Hotspot carries advanced 2T2R antenna technology,
which enhances not only wireless coverage but also provides an ultimate
wireless speed performance of 300 Mbps. |
|
|
Other Features |
| |
Multiple Network Environments: Router, AP, WiFi AP
Complies with wireless 11n standard, which upgrades data transfer rate
to 300Mbps and with coverage 4
times larger than 11g.

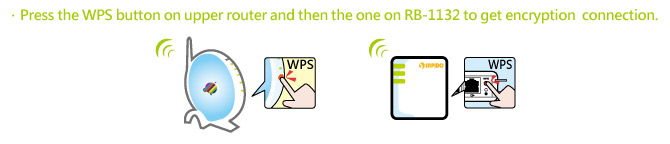

One touch WPS encryption and connection.
Multi-AP - Network groups setup for flexible management.
Secure Internet - Supports various Internet filters and advanced
encryption types.
Support DNS Server - It's easy to find your router by typing the unique
domain name.
Virtual Server
Virtual DMZ |
Key Features
|
|

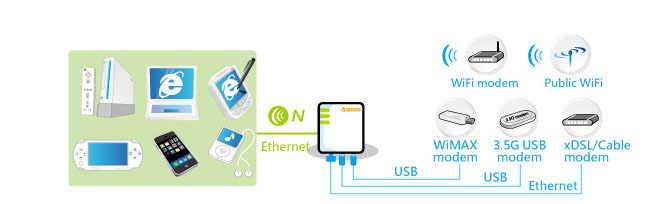

All Broadbands can Work |
| |
No matter what kind of Internet
connections you use, ie. 3G?WiMAX?xDSL/Cable/Fiber or Public WiFi,you may
share the connection via this Mobile Hotspot. |
 |
| |
|
|
|

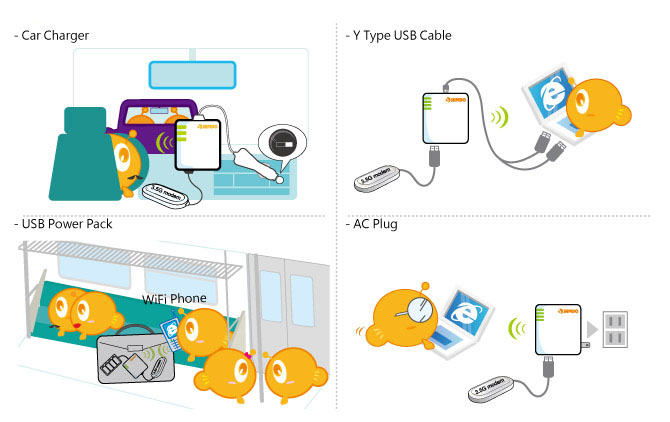

AC/DC Dual Power, Power
Non-Stop! |
| |
Built-in transformer makes it easy
to go with you. It supports both AC and DC power;moreover, there is a mini
USB port on it, which works perfectly with AC power, power pack, or car
charger. Hence, you can easily use it indoor, on the road, or in vehicles. |
 |
| |
|
|
|

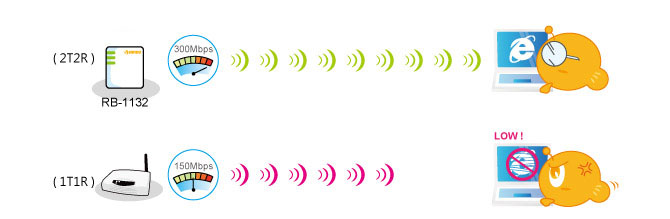

2T2R Technology - Enhance
Wireless Range with Max. Speed of 300Mbps. |
| |
Differ from the low-end 1T1R
products, this Mobile Hotspot carries 2 MIMO antennas, which improve the
wireless speed at both transmission and receiving of up to 300Mbps, also the
coverage to 4 times larger than 11g. |
 |
| |
|
|
|

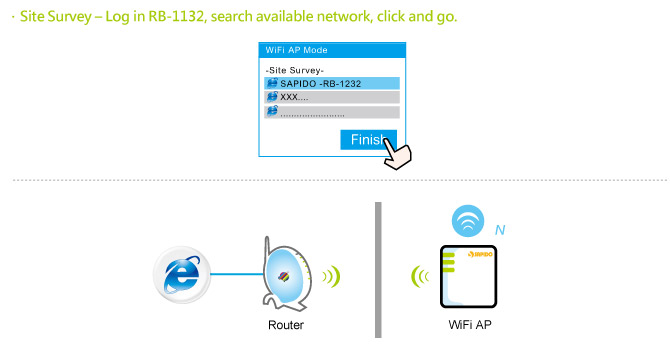

WiFi AP - Extend the Wireless
Coverage Effortlessly. |
| |
You are able to complete the WDS
via pressing the WPS button or one click at setup program. |
 |
| |
 |
Specification
|
|
Hardware |
|
|
WAN Port : |
| |
10/100 Mbps RJ45, with auto MDI/MDIX * 1 |
| |
USB 2.0 *1 |
|
|
LAN Port : |
| |
10/100 Mbps RJ45, with auto MDI/MDIX * 1 |
|
|
Standard: |
| |
IEEE 802.11b / 802.11g / 802.11n (Draft 2.0) |
|
|
Data Rate : |
| |
802.11n (up to 300Mbps) |
| |
802.11g (up to 54Mbps) |
| |
802.11b (up to 11Mbps) |
|
|
LED Indicator : |
| |
POWER, STATUS , WIRELESS/WPS, WAN, LAN |
|
|
Mode Switch : |
| |
Router/AP/WiFi AP |
|
|
Button: WPS , Reset/Reboot |
| |
Antenna: |
| |
2dBi x 2 (Built-in) |
| |
|
|
|
Network Feature |
|
|
WAN Connection : |
| |
Wired/Wireless modem (Static IP, DHCP, PPTP, PPPoE, L2TP),
3.5G/3.75G (UMTS/HSPA, CDMA2000, TD-SCDMA), WiMAX |
|
|
Routing : DHCP server, client, DNS server |
|
|
NAT : Virtual server, DMZ |
|
|
UPnP:UPnP NAT Traversal |
| |
VPN Pass Through:IP Sec, PPTP, L2TP |
| |
Session : 20,000 |
|
|
Wireless Application |
|
|
Wireless Security : |
| |
WEP 64 or 128 bit/WPA/WPA2/WPA2
Mixed |
|
|
WPS(Wi-Fi Protected setup) :
PCB/PIN |
|
|
WDS |
|
|
Multiple APs |
| |
|
|
|
Firewall |
| |
URL / Port / IP / MAC Filtering,
Port forwarding, DMZ ,QoS |
| |
|
|
|
System Management |
|
|
Web-base Interface |
|
|
Firmware upgrade via web |
|
|
Profile save
|
|
|
Event log |
|
|
Setup Language: |
| |
12 Languages (English,
Traditional Chinese, Simplified Chinese, Dutch, French, Italian,
Spanish, Portuguese, Russian, Japanese, Korean, Arabic) |
| |
|
|
|
Environment |
|
|
Dimension :91(L) x 78(W) x 31(H)
mm |
|
|
Weight: 196g (device only) |
|
|
Power : |
| |
AC 100V~240V in/ DC 5V 1.2A
Output |
| |
Mini USB DC 5V
1.5A |
|
|
Certification: CE/FCC/RoHS/NCC |
|
|
Support OS: Windows, MAC, Linux |
Stock Ready In KL & JB, Ship or Self Collect
Immediately!
Package
Included:
1 X Sapido RB-1132 HSDPA WLAN Router
1 X User Manual
1 X Sapido Application Installation CD
1X Original Box
1 X Company Receipt of purchase.
1 Year WARRANTY
|
