ITEM:

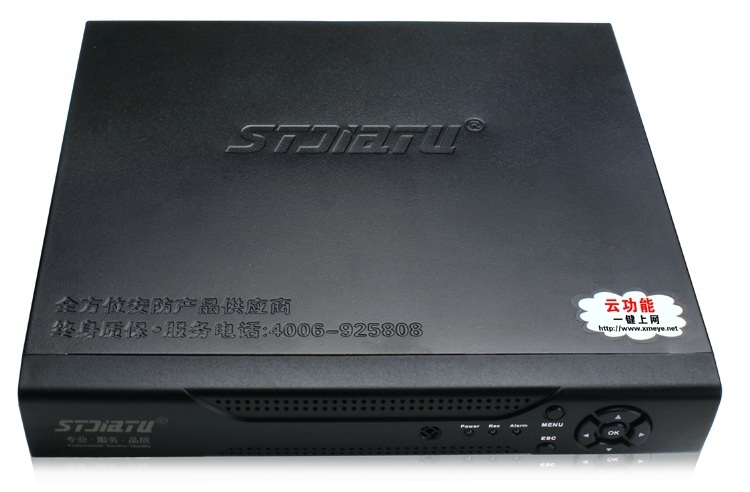

Model: CCTV-003 4CH H.264 Network HD DVR
Latest
2014 & NEW Version 4
Channel CCTV H.264 Full D1 Network HD DVR Real Time Monitoring Via
Smatphone / PC

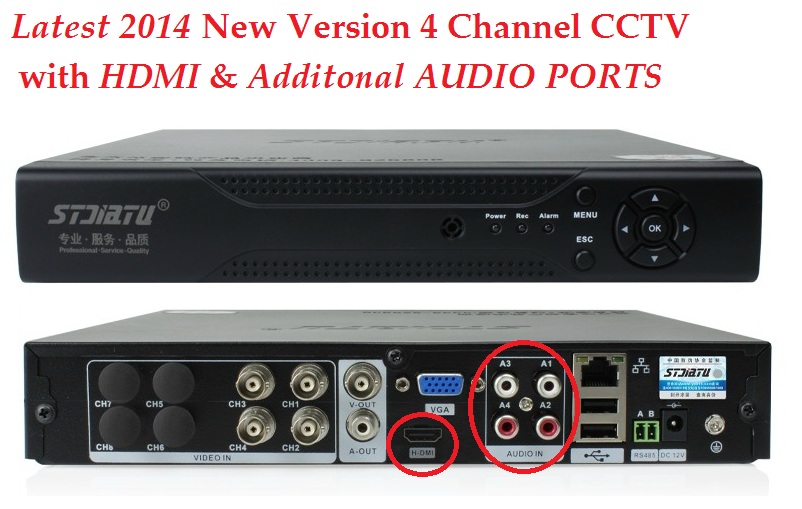

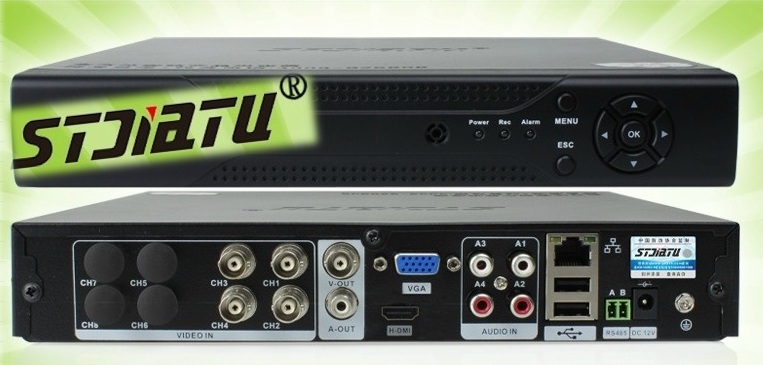

These
NEW VERSION 4 Channel CCTV Comes with HDMI
& Additional
AUDIO IN Ports
Comparision
Between Old
Version & New
Version 4CH CCTV:
Old
Version 4CH CCTV DOES NOT
have HDMI Port & Additional AUDIO IN Ports
NEW
Version 4CH CCTV comes with HDMI
Port & Additional AUDIO IN Ports!!
Features:
- H.264 Full D1 Real
Time monitoring via Handphone / Computer..

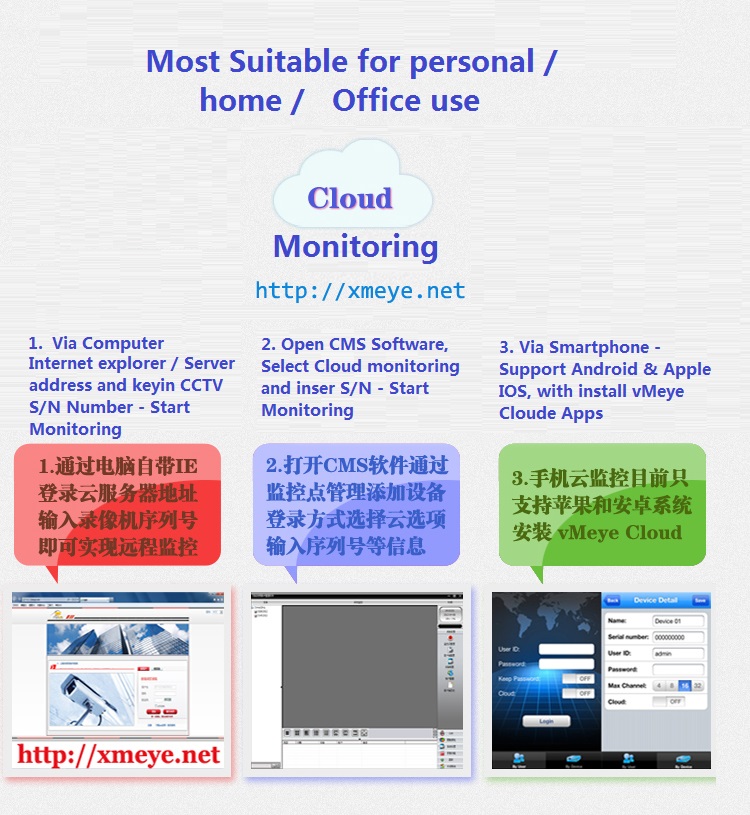

- Cloud technology
- IVS (Intelligent Video
analysis system
- Cloud technology - 1
step go into internet
- Full Easy Instruction
Given.. (English & Chinese Manual
Provided)..
- Smartphone / Tablet
Monitoring
- No Complicated set up
- Monitoring Anytime
Anywhere
- Support both android
and apple IOS
- Support Multi-device
manage platform software - CMS Software
- Support Multi channel
view / playback
Introduction:
Feature
( 1 )4 Full D1
main profile compression algorithm ideal for standalone DVR
( 2 )Real-time live display up to 4 cameras
( 3 )Max 4 channels playback simultaneously
( 4 )Support: English, French, Portugueses, Russian, Italian,
S-Chinese, T-Chinese, Spanish, Thai, Greek, Japanese, German, Polish,
Finnish, Hungarian and Turkish.
( 5 )Support smart mobile and network real time remotely monitoring,
such as iPhone / Android smartphone.
( 6 )Pentaplex function: Live, recording, playback, backup &
remote access;
( 7 )Support Dual-streams, to make mobile monitoring very easy,
flexible for network transmission
( 8 )Multiple control methods: IR remote controller, USB mouse, front
panel press button
( 9 )Smart video detection: Motion detection, video blind, video loss
( 10 )Pan Tilt Zoom and Speed Dome Control
( 11 )Easy backup methods: USB devices, remote network and client
software backup
( 12 )Alarm triggering screen tips, buzzer, e-mail &FTP upload
( 13 )Smart HDD Management
( 14 )Powerful network software: Built-in web server, multi-DVR client
&SNS Networking access for remote live viewing, recording,
playback, setting, system statue, event log, e-mail & FTP
function
( 15 )User Interface: GUI, on-screen menu tips
Video:
Video Standards: PAL 625 line, 50 f/s; NTSC 525 line, 60 f/s
Video Compression: H. 264 main profile
Video Recording:4D1: PAL 1f/s-25f/s NTSC 1f/s-30f/s;
Motion Detection: Zones: 396(22*18)detection zones, Sensitivity: 1-6(6
is highest)
Trigger recording, PTZ movement, tour, alarm, email & FTP
TV Output Adjustment: Adjust TV output color & display zone
Audio:
Audio Compression: G711A
Record &Playback:
Recording Mode: Manual>Alarm>Video
Detection>Continuous
Playback: 8 channel playback simultaneously,
Pause, stop, rewind, fast play, slow play, next file, previous file,
repeat, shuffle, backup selection
Search Mode: Time/Date, Alarm, Motion Detection & exact
search(accurate to second)

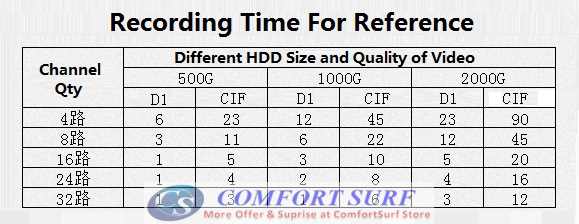

Storage &Backup:
Space Occupation: Audio28.8MB/H Video150-200 MB/H
Backup Mode: Network download/Flash stick

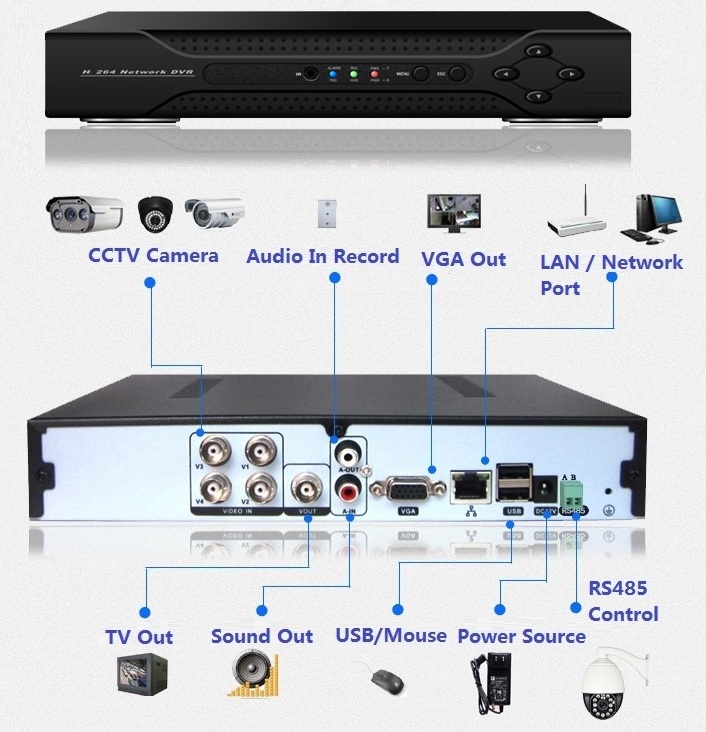

Interface:
Video Input: 4 channel, BNC, 1.0Vp-p, 75Ω
Video Output: 1 channel TV output BNC, 1.0Vp-p, 75Ω
1 VGA output
1
HDMI Output
Audio
Input: 4 channel, RCA
Audio Output: 1 channel, RCA, 200-3000mV, 5KΩ
Net Interface: RJ-45 (10M/100M)
USB Interface: 2*USB2.0 ports
PTZ Control: 1 RS485
Hard Disk: 1 SATA port(Max 2048G)
Environmental:
Power Supply: 12V/4A
Dimension: Packing size 220*225*45mm
Weight: 1.7KG
Packages Selection:
Standard
Package
RM399
RM299 |
New
Version 4CH
H.264 Full D1 CCTV DVR
1 x 4CH CCTV DVR
1 x Mouse
1 x Power Supply
1 x User Manual in SoftCopy
** For English Manual, please download from the link given:
http://www.comfortsurf.com/4%20channel%20cctv%20english%20manual.html
|
Package
1
RM699
RM579 |
New
Version 4CH
H.264 Full D1 CCTV
DVR

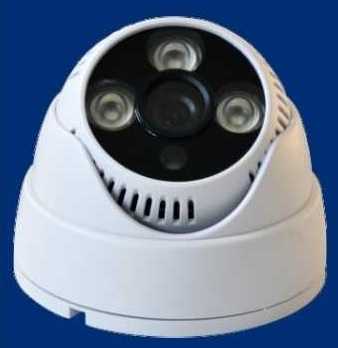

+ 4pcs
Dome 1000TVL with 24pcs
Infrared LED (SecurEyes YL-3012F LED)
+  + + +
|
Package
2
RM799
RM639 |
New
Version 4CH
H.264 Full D1 CCTV
DVR
+ 2pcs
Dome 1000TVL with 24pcs
Infrared LED (SecurEyes
YLA-3012F
LED)

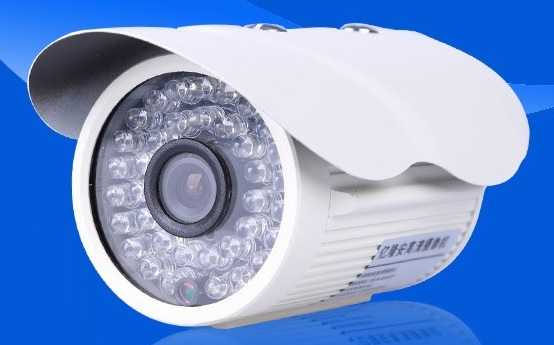

+ 2pcs
Bullet
HD 1000TVL with 36 IR LED &
IR Cut (SecurEyes YL-4012F LED)
+ Free 2pcs Holder for
YL-4012F
+ + +  +
|
Package
3
RM899
RM699 |
New
Version 4CH
H.264 Full D1 CCTV
DVR
+ 4pcs
Bullet
HD 1000TVL
with 36 IR LED & IR Cut (SecurEyes YL-4012F_LED)
+ Free 4pcs Holder for
YL-4012F
+ + + +
|
Optional
Upgrade / Purchase:
**
You can upgrade the dome camera to higher spec
camera,
by just
additional the different as stated below and remark to us.
Option
Upgrade 1:
Upgrade From Package Dome
Camera to Better SecurEyes
Dome 1000TVL
(YL-3012F Array)
with
3 Array
Lamp.
- New Generation IR ARRAY LAMP for Better Night vision & Longer
Life Span
Add
RM15/pcs
Upgrade
to
Option

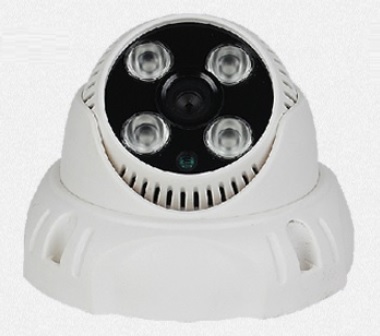

Upgrade 2:
Upgrade From Package Dome
to Better Bossan
Dome 800TVL
(BSA-1904CH)
with
4 Big Array
Lamp.
- Better Lense and New Generation IR ARRAY LAMP for Better
Night
vision & Longer Life Span
Add
RM25/pcs
Upgrade
to
Option
Upgrade 3:
Upgrade From Package Dome
Camera to Better SecurEyes
Outdoor 1000TVL
(YL-4012F
LED)
with 36 IR LED.
- Waterproof and weather proof, Suitable for Outdoor Use..
-
Free 1 x Holder
Add
RM30/pcs
Upgrade
to
Option
Upgrade 4:
Upgrade From Package Dome
Camera to Better SecurEyes
Outdoor 1000TVL
(YL-4012F
Array)
with
3 Big IR Array
Lamp.
- New Generation IR ARRAY LAMP for Better Night vision & Longer
Life Span
- Waterproof and weather proof, Suitable for Outdoor Use..
-
Free 1 x Holder
Add
RM45/pcs
Upgrade
to
Option
Upgrade 5:
Upgrade From Package
Dome
to Better

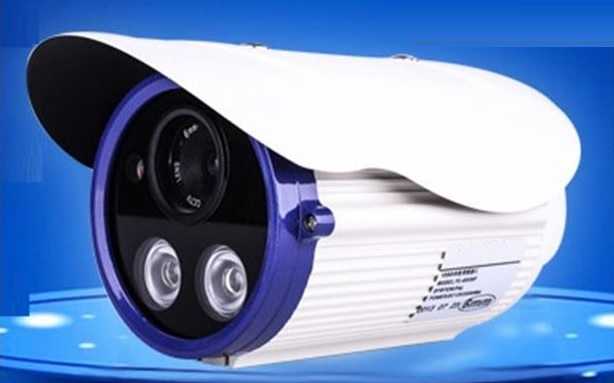

Outdoor 1280TVL SecurEyes
(YL-6098F)
with 2 Big
Array
Lamp.
- 3rd Generation IR ARRAY LAMP for Better Night vision & Longer
Life Span
- Waterproof and weather proof, Suitable for Outdoor Use..
- 1280
TVL High Resolution
-
Free 1
x Holder
Add
RM80/pcs
Upgrade
to
Option
Upgrade 6:
Upgrade From Package
Dome
to Better

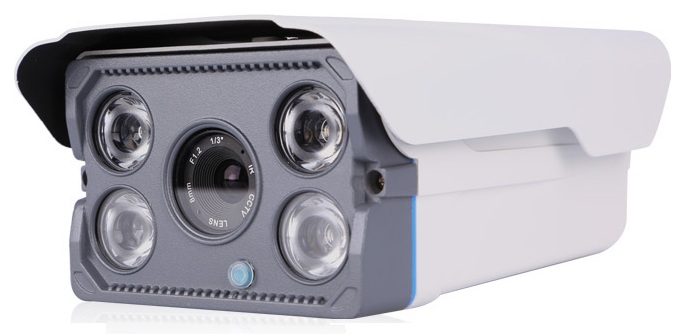

Outdoor YiLongAn
(YL-7019F) 1000TVL with 4 Big
Array
Lamp.
- 3rd Generation Big IR ARRAY LAMP for Better Night vision &
Longer
Life Span
- Waterproof and weather proof, Suitable for Outdoor Use..
-
Free 1 x Holder
Add
RM85/pcs
Upgrade
to
Option
Upgrade 7:
If you don't want so many camera as per in
package, you can choose the standard package, and add how many camera
you want.
Dome 1000TVL with 24pcs
Infrared LED (YL-3012F
LED)
RM70/pcs
To take the
upgrade option, just add the qty upgrade and amount to the
total, and remark to us the
upgrade
you take during checkout.
Any support or inquiries, just send to us at [email protected]. Our
respective person will reply you as soon as possible.
If
need other
CCTV Accessories like BNC connector / Cable / Power Supply please refer
below link:
http://www.lelong.com.my/merchant/thengst-CCTV.amp;.Security.Alarm-C1-106879-1.htm
|
CCTV
DVR 1 Year Warranty
CCTV Camera 3 Month Warranty
Now
we offer 1 to 1 exchange
within one month after purchase!
Self Collect Price for this item 4 Channel New Version DVR at our
office/shop is RM299.00
Reseller
or Dropshipping reseller are welcomed..!!
Thanks
for visit.
|
|
