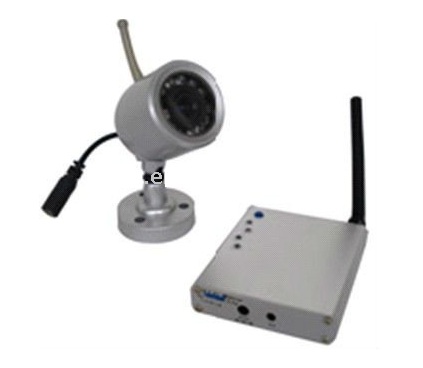

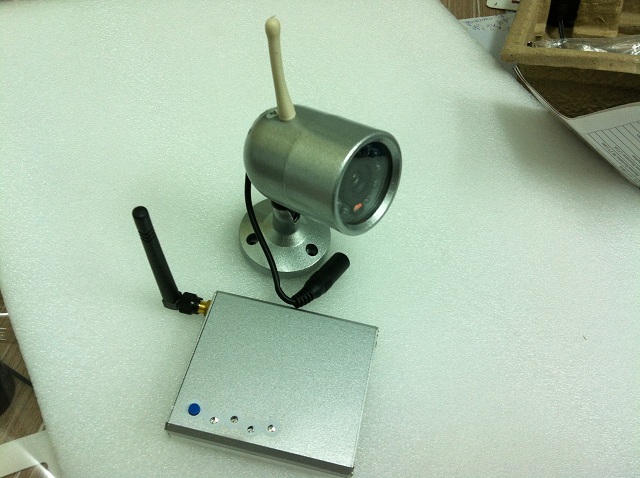

Wireless CCTV Security Camera - With IR Night Vision Surveillance / Build in Microphone

• -IR Suiveillance Camera Kit
• -Built-in microphone
• -IR LED for night vision
• -Support Looping function
• -Support upto 4-channel operation

Detailed Product Description:

Details of IR Suiveillance Camera Kit

* 2.4GHZ,High quality Color CMOS sensor for crisp, clear images
* Built-in microphone for audio monitoring
* 4-channel operation allows multiple (1-4) camera systems (optional)
* Long operation range: up to 100 m clear line of sight or 30 m throug walls/ceilings
* Built-in Infra-Red LED (11X): Color during day, Nightvision (B&W) at night
* Camera with AC or Battery operated for portability
* Compact, Lightweight and Super Mini size
* The receiver have auto-scan channel function after you press the channel switch button
until  the all four channel LED indicator light  flash

Camera Specification

-Frequency: ISM 2,400 - 2,483MHz
-Imaging Sensor: 1/3 inch OMNIVISION Color CMOS
-Horizontal Resolution: 380TV Line
-CMOS Total Pixels: 628 x 582 (PAL) / 510 x 492 (NTSC)
-View Angles: Built-in 11IR LED, 62 degrees
-Minimum Illumination: 0Lux / F1.5
-Gain Control: Automatic
-Transmission Power: 10mW
-Consumption Current: 80 mA
-Modulation Mode: FM
-Bandwidth: 18M
-Operating Range: 30m/100m (Obstructed / Unobstructed)
-Power: DC 9V
-Operating Temperature: -10oC ~ +40oC
-Operating Humidity: 85%RH
-Dimension(WxLxH):44x44x56 mm
-Weight: 200g


Receiver Specification

-Frequency: ISM 2,400 - 2,483MHz
-Antenna: 50ohm SMA
-Channel: 1-4 (Flip-type switch)
-Intermediate Frequency: 480MHz
-Frequency Stabilization: +/- 100KHz
-Demodulation Mode: FM
-Receiving Sensitivity: <-80dBm
-Video Output: 1Vp-p@75 ohm, S/N>38dB
-Audio Output: 1Vp-p@600 ohm
-Power:DC 5V/500mA
-Operating Temperature: -10oC ~ +40oC
-Operating Humidity: 85%RH
-Dimension: 100x21x63 mm
-Weight: 200g

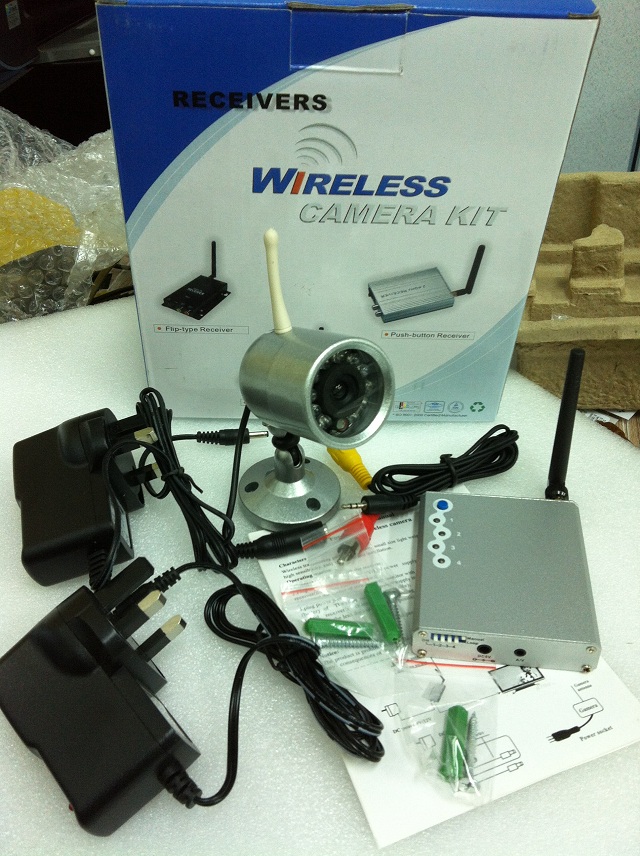

Package Content:

1 x Wireless Camera
1 x Wireless Receiver
2 x Power Adapter (3pin Malaysia Plug)
1 x Manual
1 x AV Cable
1 x Antenna Receiver
3 X Mounting Screw


Optional Purchase:

1. Wireless CCTV IR Camera:
The receiver can support upto 4pcs camera ( 4 channel ). You can buy additional camera if need additional:
RM80/pcs.


2. CCTV Pin hole Spy Camera:
The receiver can support upto 4pcs camera ( 4 channel ). You can buy additional camera if need additional:
RM70/pcs.
